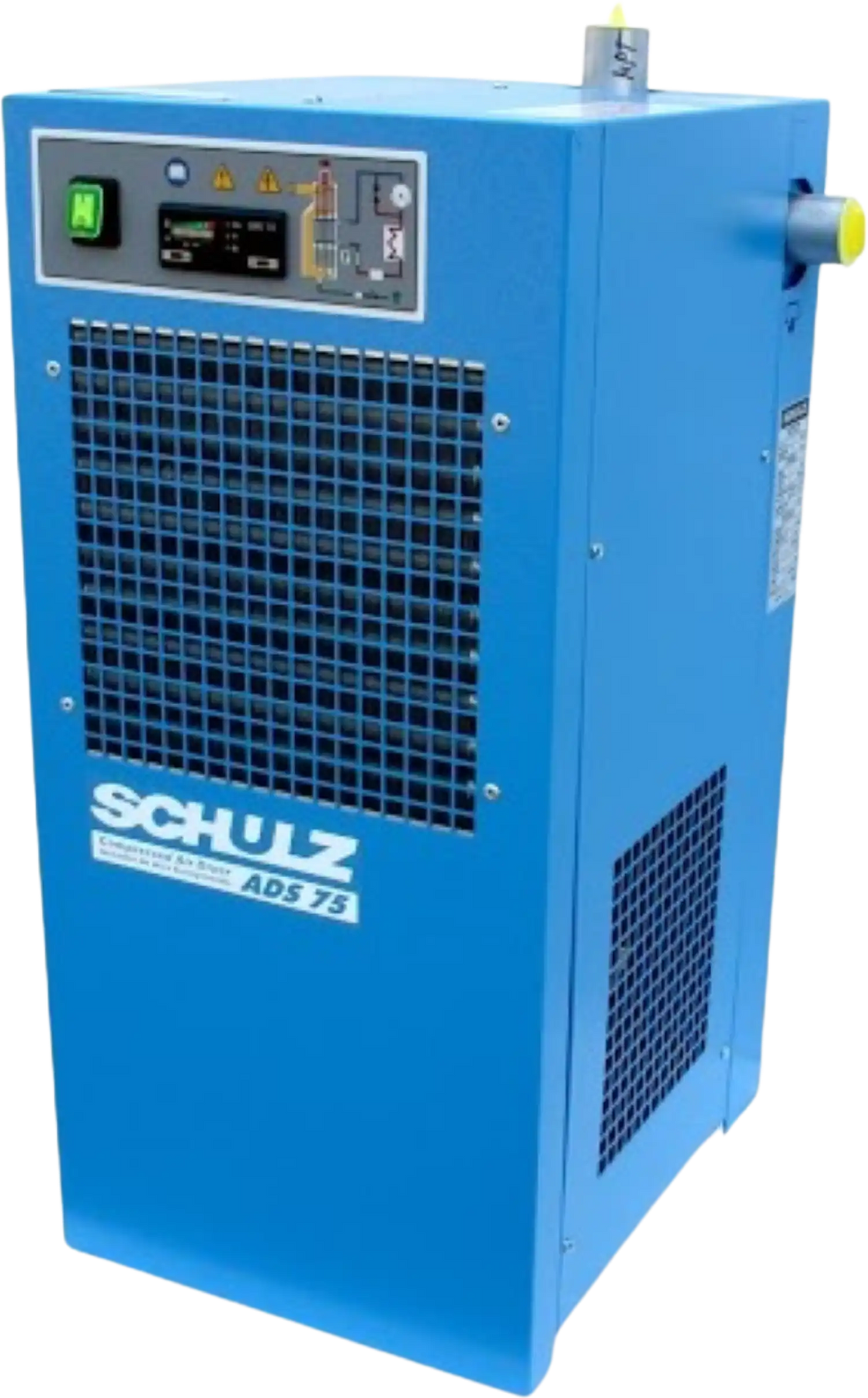

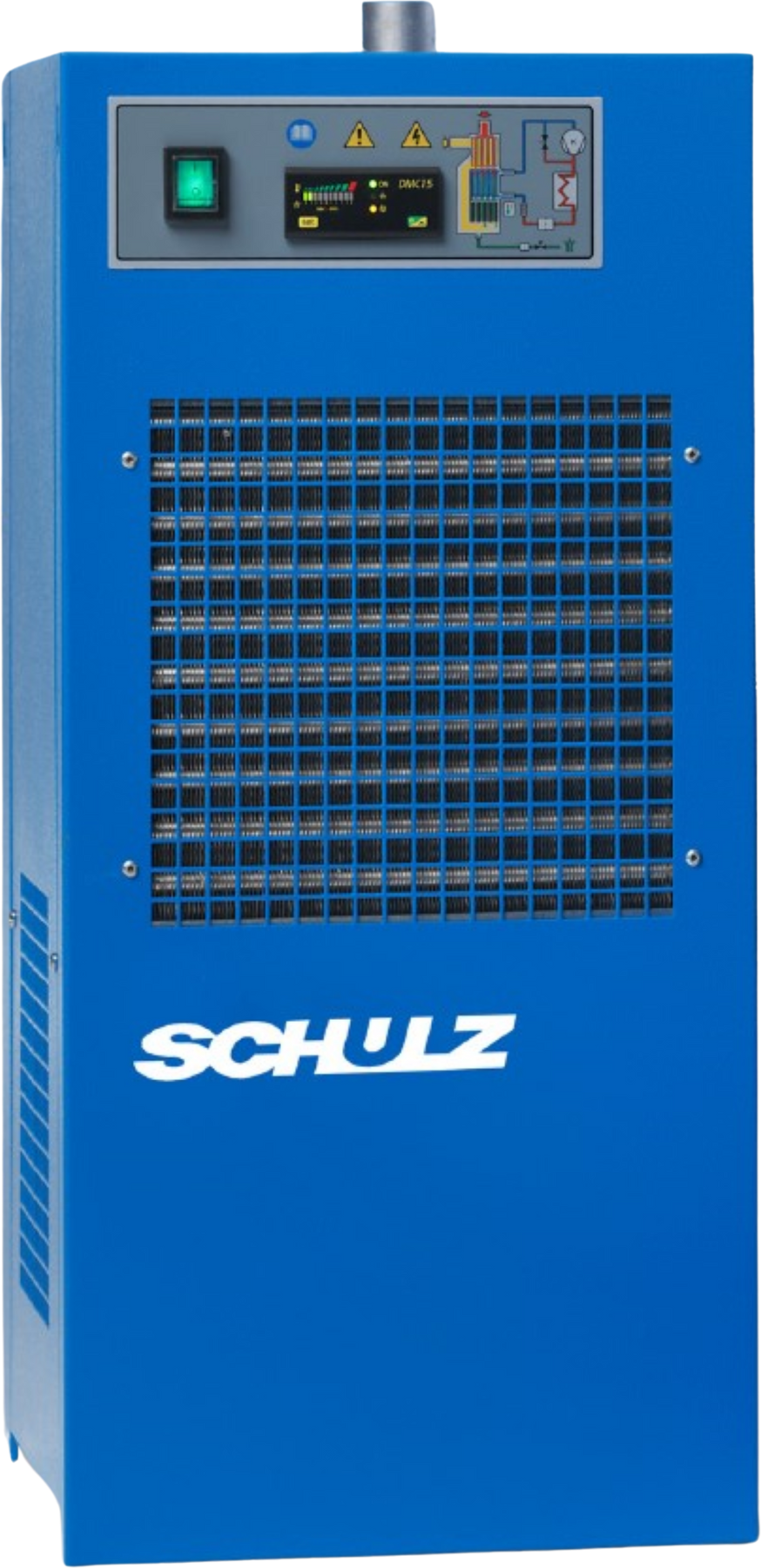

Schulz ADS-75 Air Dryer Non-Cycling Compressed 75 CFM 203 PSI 115V 1-Phase New - ADS-75-UP
The Schulz non-cycling compressed air dryers have been developed for applications with inlet and room temperatures up to 100 °F. Removable panels facilitate easy and quick access to internal components. With an integrated electronic panel, this dryer is an extremely cost-effective option. Select the best option for your company.
What our Experts Think
-
Excellent Moisture Control for Compressed Air Systems – The Schulz ADS‑75 Air Dryer Non‑Cycling (ADS‑75‑UP) delivers 75 CFM of refrigerated drying to remove water vapor from compressed air, protecting tools and downstream equipment from corrosion and moisture issues.
-
Reliable Non‑Cycling Operation – Its non‑cycling refrigerated design runs continuously for consistent dew‑point reduction, making it a solid choice for systems that demand steady, uninterrupted dry air (vs intermittent cycling dryers).
-
Efficient Performance & Controls – Integrated electronic controller with digital temperature/dew‑point display and auto drain valve help maintain reliable operation while simplifying monitoring and maintenance.
-
Strong Pressure & Flow Specs – Supports compressed air up to 203 PSI maximum with a 1″ NPT inlet/outlet and a matched 75 CFM capacity that pairs well with medium‑sized compressors.
-
Built for Easy Serviceability – Removable panels and quick‑disconnect automatic condensate drain make access and upkeep straightforward, reducing downtime.
-
Compact, Shop‑Ready Design – At ~75 lb with a 115 V single‑phase supply, the unit fits most workshop and industrial compressor setups without requiring complex electrical upgrades.
-
Expert Verdict – A durable, easy‑to‑service refrigerated air dryer that delivers reliable continuous drying and energy‑efficient performance, ideal for compressed air systems where moisture control is critical for tooling and process quality.
Q&A
Q: What is the Schulz ADS‑75‑UP air dryer used for?
A: It’s a non‑cycling refrigerated compressed air dryer that removes moisture from compressed air systems to protect tools and equipment from corrosion, rust, and water damage in industrial and workshop settings.
Q: What capacity and airflow does it support?
A: Designed for compressors up to 75 CFM (≈2,123 L/min), making it suitable for medium‑sized air systems and consistent drying performance.
Q: What pressure range can it handle?
A: Rated for 100 PSI nominal and up to 203 PSI maximum, allowing integration with a wide range of compressor setups.
Q: What power requirements does this dryer have?
A: It runs on 115 V AC single‑phase power (60 Hz), drawing about 5.1 A, so it can plug into standard workshop electrical circuits.
Q: What features help its performance and maintenance?
A: Includes an electronic controller with digital temperature/dew‑point display, timer‑controlled auto drain valve, high‑efficiency refrigerant compressor, and removable panels for easy access and service.
Q: What type of refrigerant is used?
A: Utilizes R134a refrigerant, which is effective for cooling and moisture removal while being environmentally considerate.
Q: How does non‑cycling design benefit users?
A: The non‑cycling refrigerated design means the refrigeration system runs continuously, which suits steady, full‑capacity drying needs and keeps the air consistently dry without cycling on/off.
Q: Who should consider the ADS‑75 dryer?
A: Industrial shops, fabrication facilities, and professional maintenance operations that need reliable, continuous moisture‑free compressed air for tools, paint systems, pneumatic equipment, and process lines.
Maintenance Tips
-
Monitor Dew Point & Operation Daily: Check the electronic controller readout regularly to ensure dew point and temperature are within expected ranges, and confirm the automatic condensate drain is functioning properly.
-
Keep Condenser Clean: Blow dust and debris off the condenser fins with low‑pressure compressed air monthly to maintain optimal cooling and moisture removal.
-
Inspect Drain & Strainer: Close the manual condensate drain valve, clean the strainer with compressed air and a brush, then reinstall securely to ensure proper drainage and prevent clogs.
-
Check Electrical & Refrigeration Circuits: At longer intervals (yearly or ~1000 hours), verify that screws and electrical connections are tight, inspect hoses and refrigerant lines for leaks, and ensure the compressor draws normal current.
-
Pre‑Filter the Air: Use a water separator or coalescing filter before the dryer inlet to remove bulk moisture and oil—this reduces internal contamination and prolongs dryer life.
-
Power Off & Depressurize Before Servicing: Always shut down the dryer, cut power, and relieve pressure before performing any cleaning or maintenance to ensure safety.
