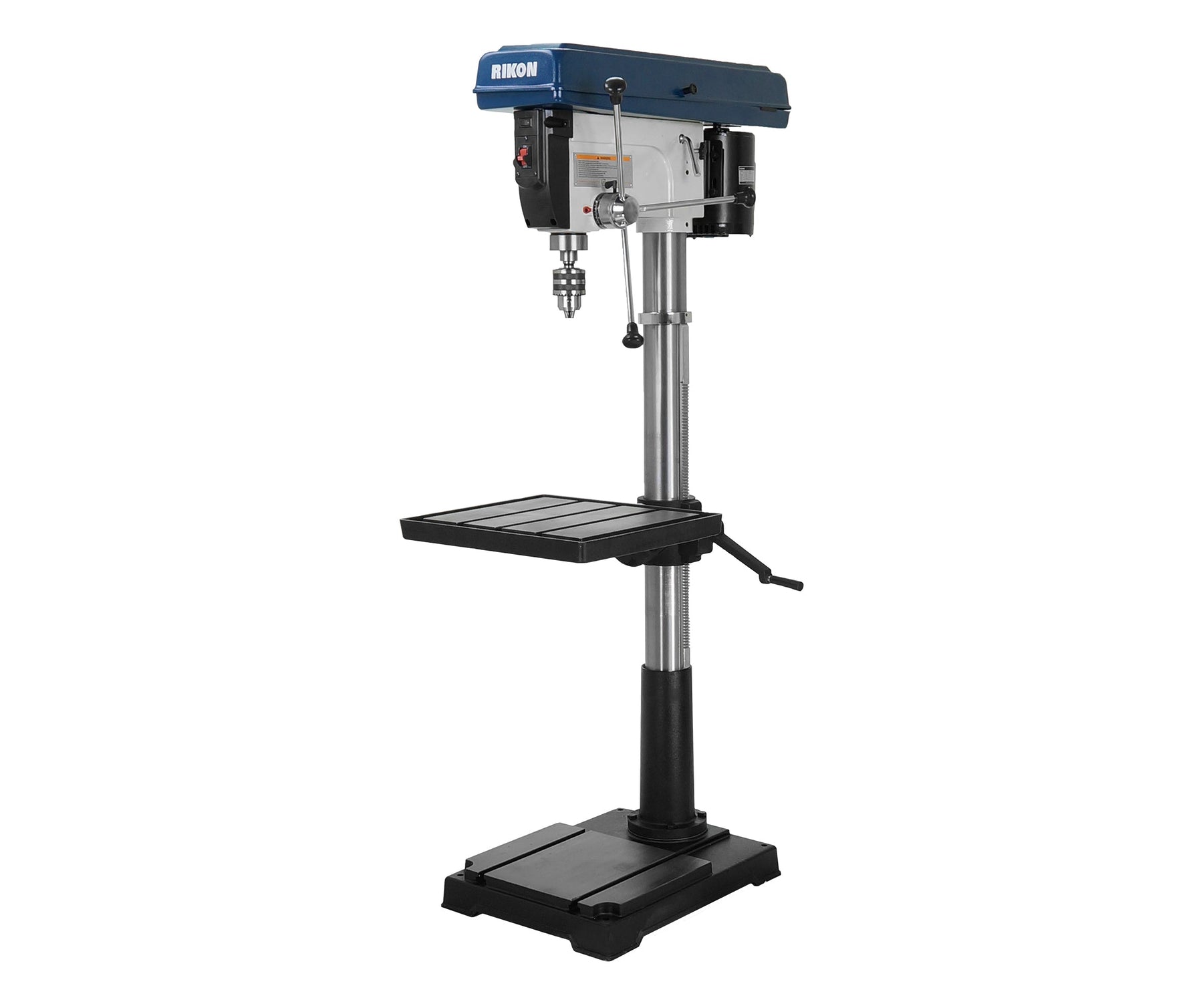

20” Floor Drill Press #30-240 is the largest model, valued by production shops for its robust design, extra-large table, chuck, base and wide speed range. This machine gives serious, basic operation that will take the heavy workloads demanded of it.
Features
Powerful 1 HP TEFC Motor
12 Spindle Speeds
Clutch Depth Stop
Cast Iron Table
Specifications
Motor Horsepower
1 HP TEFC
Motor Amps
13.5
Motor Volts
120V, 60Hz
Motor RPM
1,720
Swing
20”
Chuck Size
3/4”
Chuck Taper
JT3
Drilling Capacity
1”
Spindle Travel
4-3/4”
Spindle Taper
MT3
Head Rotates
360°
Head Tilts
-
Speeds
12
Speed Range (RPM)
180 – 3,865
Quill Diameter
3”
Table Dimensions
16-1/2” x 18-3/4”
Table Tilts
90°
Table Rotates
360°
Maximum Chuck to Table
24-9/16”
Maximum Chuck to Base
43-13/16”
Column Diameter
3-5/8” (92mm)
Overall Height
68”
Overall Base Size
22-3/4” x 16-1/2”
Overall Net Weight
250 lbs.
What our Experts Think
Robust Power for Big Jobs – The RIKON 20″ Floor Drill Press (Model 30‑240) uses a 1 HP TEFC motor with a wide speed range (~180–3,865 RPM), providing solid performance for drilling wood, plastics, and metal.
Large Capacity & Versatility – With a 20″ swing and a spacious 16½″ × 18¾″ cast‑iron table, this floor model handles larger workpieces and supports heavy‑duty drilling tasks.
Precision & Repeatability – Features like a clutch depth stop and easy rack‑and‑pinion table height adjustment help achieve consistent hole depths and quick setups.
Stable Machine Construction – Heavy cast iron base, head, and table deliver rigidity, reduce vibration, and improve drilling accuracy in demanding workshop use.
Full Rotational Flexibility – The table tilts up to 90° and rotates 360°, letting users position workpieces for angled or precision drilling.
Professional‑Grade Build – Solid keyed chuck, multiple speed options, and 5‑year warranty make this drill press a reliable choice for serious woodworkers and metalworkers alike.
Expert Verdict – A heavy‑duty, workshop‑ready floor drill press that balances power, capacity, and precision, ideal for production environments and ambitious DIY projects.
Q&A
Q: What is the RIKON 30‑240 20″ Floor Drill Press used for? A: A heavy‑duty 20″ swing floor drill press for precise drilling in wood, plastics, composites, and metal — ideal for workshop and production use.
Q: What power and speeds does it offer? A: It has a 1 HP TEFC motor with 12 spindle speeds (180–3,865 RPM) so you can match speed to material and bit size.
Q: What is the drilling capacity? A: The machine drills up to 1″ depth with 4‑3/4″ spindle travel using standard bits.
Q: What chuck size and taper are used? A: It features a 3/4″ keyed chuck with JT3 taper for secure bit holding.
Q: How adjustable is the work table? A: The 16‑1/2″ × 18‑3/4″ cast‑iron tabletilts up to 90°, rotates 360°, and adjusts height along the column for versatile drilling positions.
Q: Does the head rotate? A: Yes — the drill head rotates 360° to position the spindle over large workpieces.
Q: Is it built for durability? A: Yes — heavy cast iron construction with rack‑and‑pinion table adjustment, keyed feed handles, and a clutch depth stop make it rugged and accurate.
Q: Who is this drill press ideal for? A: It’s suited for professional workshops, serious hobbyists, and production environments requiring stable, accurate drilling on large and heavy workpieces.
Maintenance Tips
Clean After Each Use: Remove dust, metal shavings, and debris from the table, spindle, and base to prevent buildup that affects accuracy.
Inspect Drive Belts and Pulleys: Check for wear, cracks, or looseness and replace belts as needed to maintain consistent spindle speeds.
Lubricate Moving Parts: Lightly oil the spindle, quill, and table adjustment mechanisms for smooth operation.
Protect the Cast-Iron Surfaces: Apply a thin coat of paste wax to the table and column to prevent rust and ensure smooth movement of workpieces.
Check Motor Ventilation: Keep vents clear of dust to prevent overheating and maintain optimal performance.
Disconnect Power Before Maintenance: Always unplug the drill press before cleaning, adjusting speeds, or replacing parts to prevent accidents.
