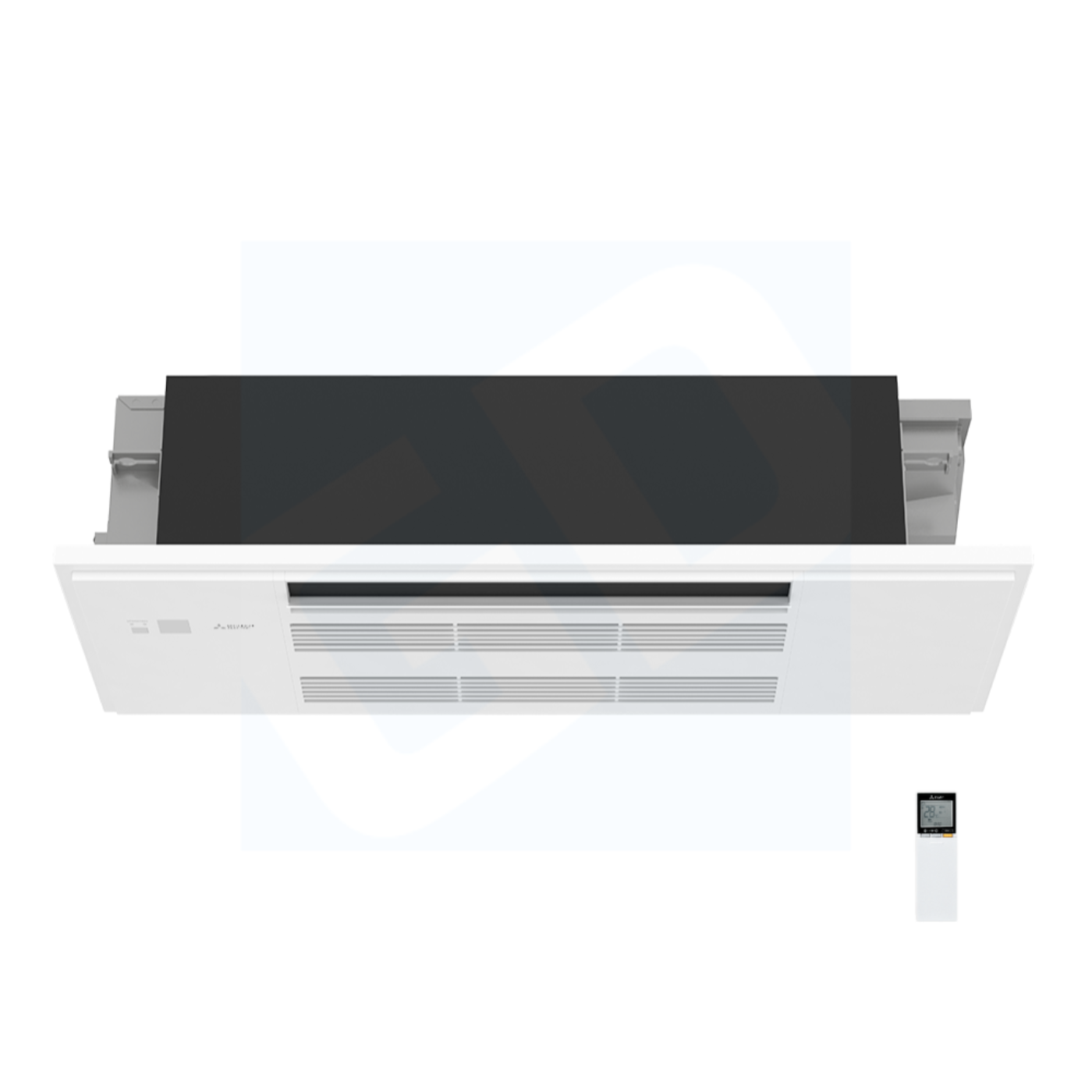

Compact Ceiling Cassette Climate Solution: The Mitsubishi MLZ‑KX06NL 6,000 BTU One‑Way Ceiling Cassette Unit is a slim, recessed indoor unit that fits between standard ceiling joists, delivering efficient 6,000 BTU cooling and 7,200 BTU heating for small to medium spaces like bedrooms, offices, or living areas.
Quiet, Balanced Performance: Designed with adjustable fan speeds and vanes, this unit provides balanced airflow and comfortable reach throughout the room with low noise levels — ideal for living spaces or quiet environments.
Energy‑Smart Features:Econo Cool mode increases energy efficiency by automatically adjusting airflow based on temperature while maintaining comfort. Hot‑Start technology prevents cold drafts during heating.
Integrated Condensate Management: Built‑in condensate lift mechanism (≈19.6”) simplifies drainage without requiring an external pump, reducing installation complexity.
Flexible Controls: Comes with a handheld remote controller and supports optional Wi‑Fi control via Mitsubishi’s Comfort app or wired/wireless thermostats for convenient scheduling and zone management.
Easy Service & Installation: Bottom‑accessible service panel, fits between 16” ceiling joists, and washable antibacterial filters help make maintenance straightforward.
Discreet Aesthetics: Low‑profile design integrates cleanly into ceilings, leaving only the grille visible (grille sold separately), preserving interior décor.
Expert Verdict: A strong choice for ductless heating and cooling where ceiling space is available — combining efficient performance, energy‑saving features, and quiet operation in a compact, ceiling‑mounted package.
Q&A
Q: What type of unit is the MLZ‑KX06NL? A: It’s a 6,000 BTU one‑way ceiling cassette indoor unit designed for ductless mini‑split HVAC systems (indoor unit only; grille and outdoor unit sold separately).
Q: What cooling and heating capacity does it offer? A: Provides up to 6,000 BTU/h cooling and around 7,200 BTU/h heating when paired with a compatible Mitsubishi outdoor heat pump system.
Q: What refrigerant type does it use? A: This model uses R‑454B refrigerant, a lower‑GWP refrigerant compliant with modern efficiency standards.
Q: How does airflow and vane control work? A: It features adjustable fan speeds and auto vane control (directional airflow up/down and left/right) to optimize comfort and reduce drafts.
Q: What comfort‑enhancing features are included? A: Includes Econo Cool mode for energy‑efficient airflow regulation, Hot‑Start technology in heating mode to avoid cold drafts, and dehumidification control for improved comfort.
Q: Does it help with condensate management? A: Yes — the unit has a built‑in condensate lift mechanism (~19.6″ capacity), reducing the need for an auxiliary drain pump.
Q: How is this unit controlled? A: Controlled via the included handheld remote, and it supports wireless, wired, or Comfort‑app control (Wi‑Fi interface optional).
Q: Is it easy to install and maintain? A: Yes — the slim, low‑profile design fits between standard 16″ joists and allows service access from below.
Q: What are typical applications for this unit? A: Ideal for bedrooms, offices, small living areas, or renovation spaces where a ceiling‑mounted solution delivers discreet, even airflow without a wall head
Maintenance Tips
Clean Filters Every 2–4 Weeks: Remove, rinse, and dry the washable antibacterial air filter to maintain airflow and efficiency.
Dust Intake & Surrounding Area: Wipe the intake grille and nearby ceiling surfaces with a soft cloth to prevent dust buildup.
Keep Drain Line Clear: Check condensate drain for clogs to prevent leaks and water damage.
Maintain Airflow Clearance: Ensure nothing blocks intake or discharge vents to optimize performance.
Annual Professional Inspection: Have HVAC technicians clean coils, check refrigerant, and inspect overall unit performance.
Check Refrigerant & Connections: Only trained professionals should handle R‑454B refrigerant lines and connections.
Use Remote & Modes Efficiently: Adjust fan speed, vane direction, and energy-saving modes like Econo Cool for comfort and efficiency.
Dehumidification Mode: Use dry mode to reduce humidity and prevent mold buildup.
