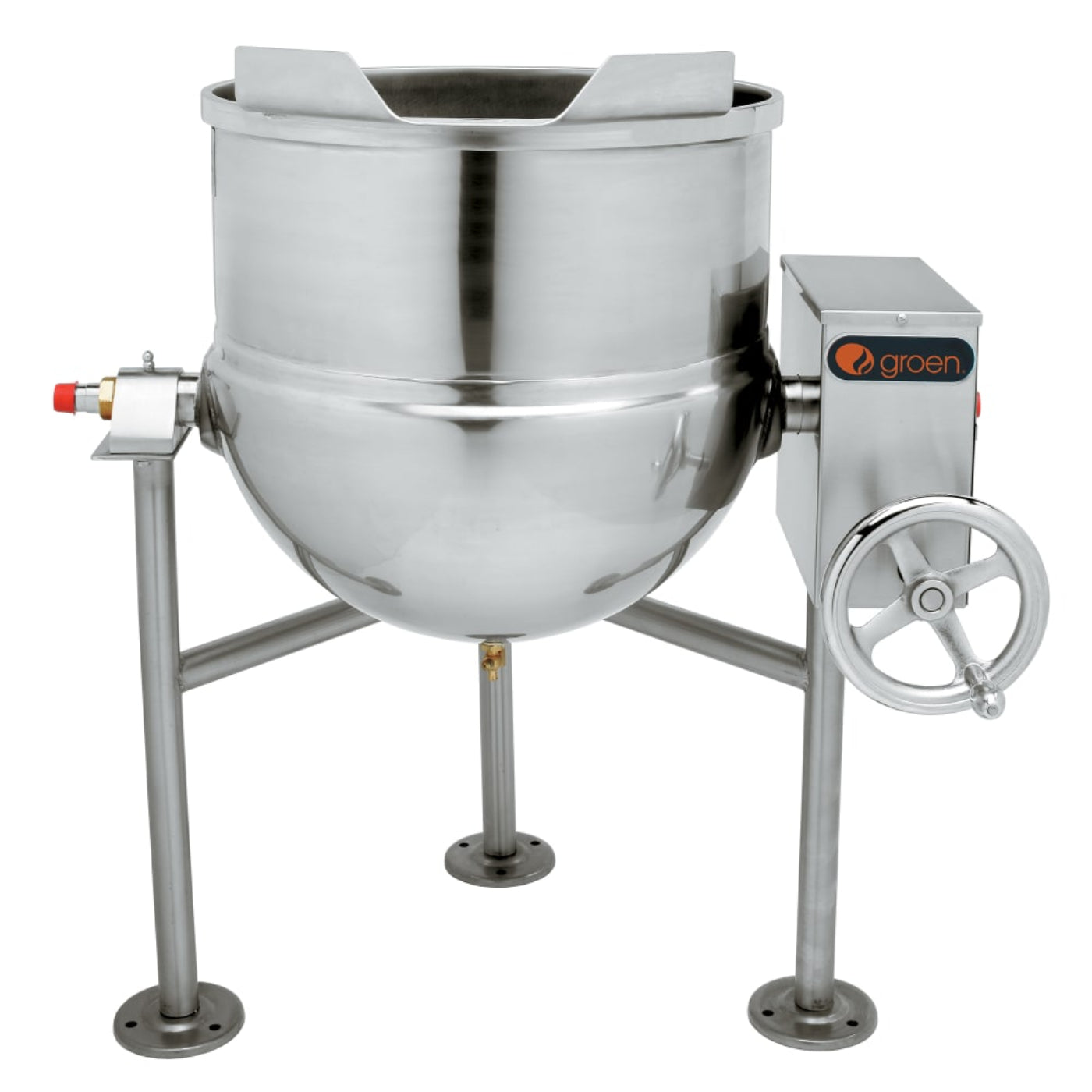

Globe Groen DL-40, INA/2 Direct Steam 40-Gallon Kettle/Cooker Mixer - GRDL40INA2

Globe  Groen DL-40, INA/2 Direct Steam 40-Gallon Kettle/Cooker Mixer - GRDL40INA2

If your business needs a Kettle/Cooker Mixer, this Groen DL-40, INA/2 may be exactly what you need. It has a durable stainless steel construction, easy to use controls, and ideal steam pressure features. It has a solid one-piece welded, 316 stainless steel construction with a 304 stainless steel solid one-piece kettle jacket. It has a heavy-duty reinforced rim and a welded-in butterfly-shaped pouring lip. The butterfly-shaped pouring lip ensures increased sanitation and durability. This DL-40, INA/2 includes 10-gallon etch markings, a double pantry faucet, and a steam regulating system.

The controls regulate both its agitator and steam. The agitator has electronic, variable speed controls and operates at any RPM between minimum and maximum. The steam pressure operates dependably at any steam pressure of 50 PSIG. The steam supply is injected directly into the jacket through the trunnion and the condensate is removed through a tube contained in the jacket and connected to the opposite trunnion. There are no exposed steam piping or obstructions on the kettle body.

Features

• Construction
• Solid one-piece welded, 316 stainless steel construction
• 304 stainless steel solid one-piece kettle jacket
• Heavy-duty reinforced rim with a welded-in butterfly-shaped pouring lip for maxium sanitation and durability
• Includes 10-gallon etch markings, double pantry faucet, and steam regulating system
• Tilting kettle with a positive locking worm and gear tilt mechanism
• Mechanism enclosed in a polished, drip-proof stainless steel housing
• Kettle mounted on a polished, stainless steel tri-leg stand with stainless steel floor flanges
• Agitator Assembly
• Designed to thoroughly fold and blend with gentle lifting action provided by the agitator, entering kettle body at an angle
• Inclined agitator to be stainless steel tubular frame, complete with finger-type or shovel-type scrapers
• Agitator is readily removable for ease of cleaning and maximum sanitation
• Driven by a gear motor through an electronic variable-speed control
• Motor is completely enclosed-type with a cast iron housing, helical bevel gearing and right angle shaft down
• Motor drive is mounted on a stainless steel channel that manually hinges out to the back of kettle
• Equipped with a spring assist for agitator tilt-out
• Positive quick-acting lock and latch mechanism to be provided to secure the agitator when it is in the kettle
• Finish
• 180 emery grit polished kettle interior
• Bright semi-deluxe buff finish kettle exterior
• Ensures maximum ease in cleaning and maintaining brilliant appearance
• Steam Pressure
• Operates dependably at any steam pressure of 50 PSIG (to a minimum of 5 PSIG)
• Higher working pressure available
• Steam supply is injected directly into the jacket through the trunnion
• The condensate is removed through a tube contained in the jacket and connected to the opposite trunnion
• No exposed steam piping or obstructions are on the kettle body
• Agitator Controls
• Uses electronic, variable speed controls
• Operates at any RPM between minimum and maximum settings
• Installation Requirements
• 3/4" NPT steam inlet and condensate connection (provided)
• Remote steam source
• Steam trap assembly with check valve and globe valve (provided)

Specifications

What our Experts Think

• Fast, Even Cooking: Direct steam system delivers consistent heat across the 40-gallon kettle.
• High Capacity: Ideal for large-volume commercial cooking, perfect for soups, sauces, and stews.
• Durable Construction: Heavy-duty stainless steel ensures long-lasting performance in busy kitchens.
• User-Friendly Operation: Intuitive controls for precise temperature and mixing.
• Easy Maintenance: Smooth surfaces and simple design allow for quick and safe cleaning.

Q&A

Q: What is this product?
A: A 40‑gallon direct steam kettle/cooker mixer engineered for high‑volume commercial kitchens and food production.

Q: How does it heat and cook?
A: Uses direct steam with a 2/3 steam jacket rated to 50 psi for fast, even heat distribution.

Q: What mixer features are included?
A: Inclined agitator mixer with electronic variable‑speed control ensures thorough blending and prevents scorching.

Q: What materials and build quality?
A: Built with a 316 stainless steel liner and stainless steel exterior for durability and easy sanitation.

Q: How is product discharge handled?
A: Features a 2″ flush‑mounted ball valve for controlled, efficient draining and transfer.

Q: What other design features assist operation?
A: Tilt‑type kettle with positive‑lock tilt mechanism and floor‑mounted control console for easy access.

Q: Where is it best used?
A: Ideal for commercial kitchens, catering facilities, institutional foodservice, and large‑batch cooking.

Maintenance Tips

• Clean kettle interior after each use to prevent residue buildup
• Wipe exterior with a damp cloth for hygiene
• Inspect steam connections, valves, and seals regularly
• Lubricate agitator and moving parts per manufacturer instructions
• Check safety valves and pressure gauges for proper function
• Drain water and steam lines after use to prevent scaling
• Follow manufacturer guidelines for safe operation
