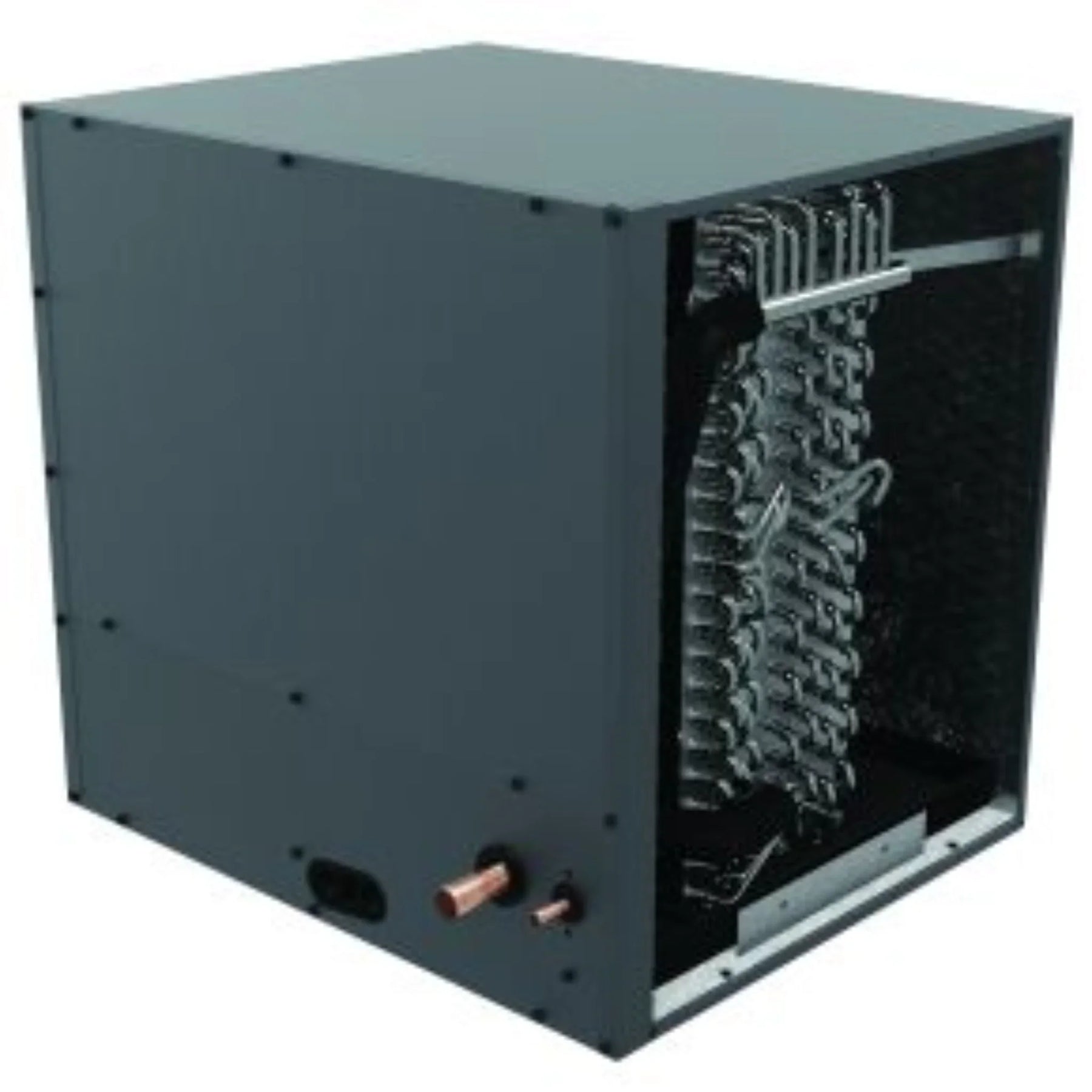

Goodman - 5 Ton - 24.5" Height Horizontal Cased Evaporator Coil TXV - R32 - CHPTA6030D3
The Goodman CHPTA6030D3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA6030D3 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.
Features
- 5 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
Specifications
| 5 Ton 24.5" Height Goodman Horizontal Cased Evaporator Coil - TXV - R32 |
| SKU |
CHPTA6030D3 |
| Weight (in lbs) |
82.000000 |
| Brand/Manufacturer |
Goodman |
| Configuration |
Horizontal |
| Refrigerant |
R32 |
| Liquid Line |
3/8" |
| Suction Line |
7/8" |
| Tonnage |
5 Ton |
| Style |
A-Coil |
| Certification |
ETL Listed | AHRI Certified |
| Height |
24 1/2" |
| Width |
30" |
| Depth |
21" |
Manual
What our Experts Think
-
High-Capacity 5-Ton Cooling Support: Designed to handle up to 60,000 BTU, making it a strong match for large residential systems and high-capacity HVAC setups.
-
Factory-Installed TXV for Efficiency: The built-in thermal expansion valve (TXV) precisely regulates refrigerant flow, improving cooling efficiency and system performance.
-
Optimized for Modern R-32 Systems: Engineered for R-32 refrigerant, offering improved heat transfer and compatibility with newer, environmentally conscious HVAC systems.
-
Durable All-Aluminum Coil Construction: Aluminum tube-and-fin design provides strong corrosion resistance and reliable heat exchange for long service life.
-
Horizontal Installation Flexibility: Built for horizontal airflow applications, ideal for attic, crawlspace, or closet installations.
-
Compact, Service-Friendly Cabinet: A 24.5" height and single front access panel allow easier installation and maintenance in tight mechanical spaces.
-
Condensation-Reducing Insulation: Foil-faced cabinet insulation and a rust-resistant thermoplastic drain pan help prevent moisture buildup and protect system components.
Q&A
Q: What is the capacity of the Goodman CHPTA6030D3 evaporator coil?
A: The Goodman CHPTA6030D3 5 Ton Horizontal Cased Evaporator Coil supports up to 5 tons of cooling capacity, making it suitable for high-capacity residential HVAC systems and heat pumps.
Q: What refrigerant is compatible with the Goodman CHPTA6030D3 coil?
A: This evaporator coil is designed specifically for R-32 refrigerant, supporting newer high-efficiency HVAC systems and improved environmental performance.
Q: Does the Goodman CHPTA6030D3 include a TXV?
A: Yes. The unit comes with a factory-installed thermal expansion valve (TXV) for precise refrigerant flow control in both cooling and heat pump applications.
Q: What installation configuration does this evaporator coil support?
A: The Goodman CHPTA6030D3 is designed for horizontal installation (left or right), commonly used in attics, crawl spaces, and horizontal air handler setups.
Q: What are the dimensions of this evaporator coil?
A: The unit measures approximately 24.5 inches high, 30 inches wide, and 21 inches deep, providing a compact cabinet that fits many residential HVAC installations.
Q: What materials are used in the Goodman CHPTA6030D3 coil?
A: It features an all-aluminum coil design with aluminum tubing and fins, improving heat transfer while helping resist corrosion.
Q: Is this evaporator coil compatible with heat pump systems?
A: Yes. The CHPTA6030D3 is built for both air conditioning and heat pump systems, making it a versatile indoor coil for matched HVAC systems.
Q: What airflow capacity does the Goodman CHPTA6030D3 support?
A: This coil supports airflow up to approximately 1900 CFM, suitable for large residential systems requiring higher cooling capacity.
Q: Does the Goodman CHPTA6030D3 include durability or safety features?
A: Yes. It includes rust-resistant thermoplastic drain pans, galvanized steel cabinet construction, and an R-32 leak detection sensor for added safety and long-term reliability.
Maintenance Tips
-
Replace or clean air filters regularly (every 1–3 months) to maintain proper airflow and prevent dust buildup on the evaporator coil.
-
Inspect the coil annually for dirt or debris; a clean aluminum coil improves heat transfer and overall system efficiency.
-
Keep the condensate drain pan and drain line clear to prevent water overflow, mold growth, and system shutdowns.
-
Check refrigerant line connections (3/8" liquid, 7/8" suction) for leaks or insulation damage to maintain optimal cooling performance.
-
Inspect the TXV (thermal expansion valve) during service visits to ensure proper refrigerant flow and efficient system operation.
-
Ensure the cabinet insulation and access panel remain sealed to prevent air leakage and condensation inside the unit.
-
Clean the drain pan and check secondary drain connections to reduce water retention and prevent clogs.
-
Schedule annual HVAC professional maintenance to inspect refrigerant levels, coil condition, and system compatibility with R-32 refrigerant systems.
