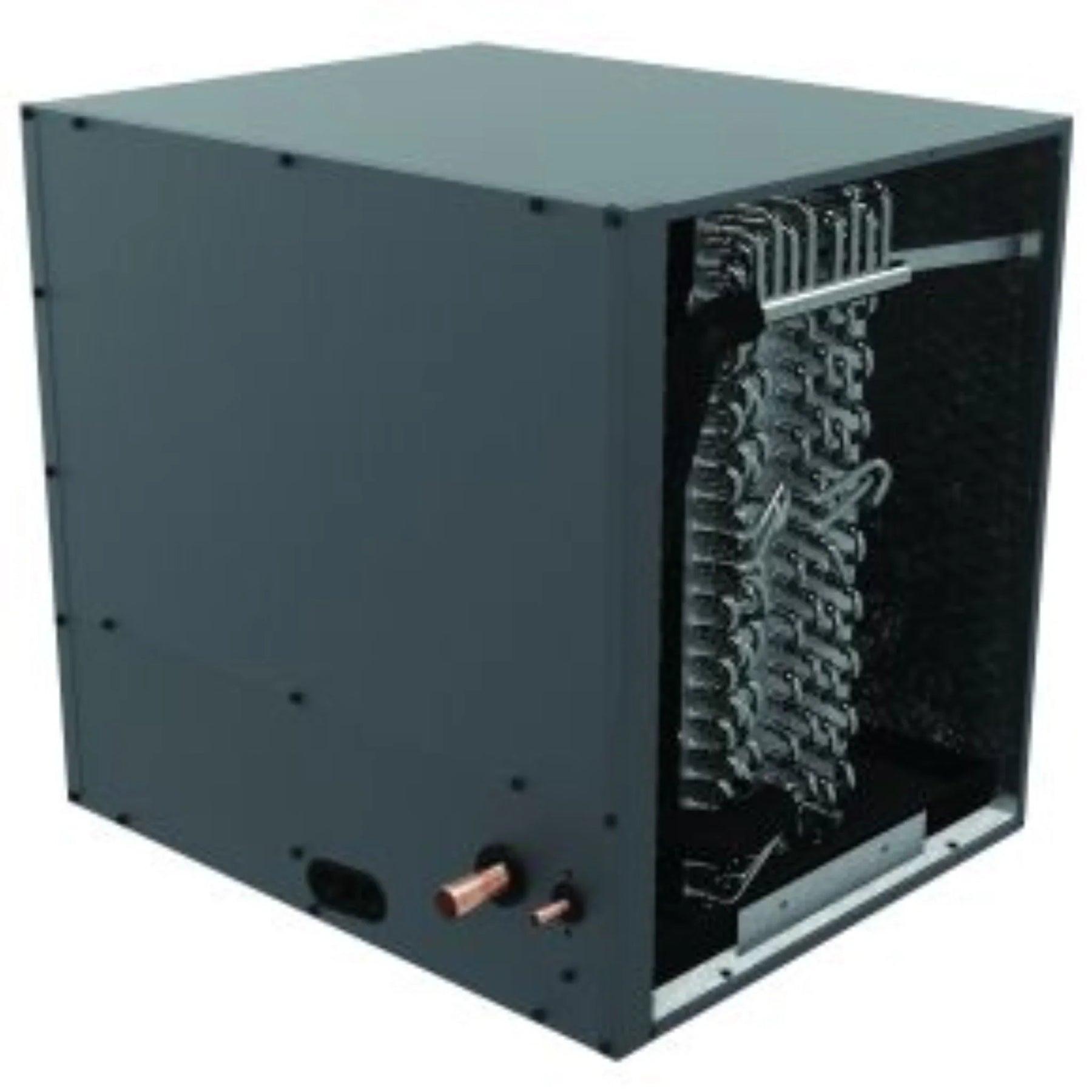

The Goodman CHPTA4830C3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA4830C3 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.
Features
4 ton horizontal evaporator coil
Can be used with heat pump and AC-only condensers
R32: Complies with Clean Air Act New Refrigerant Requirements
Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
Right‑Sized for 4‑Ton Systems: Designed to support 48,000 BTU cooling capacity, this evaporator coil pairs perfectly with 4‑ton split systems for larger homes and commercial‑style HVAC setups.
Factory‑Installed TXV for Efficiency: The thermal expansion valve (TXV) optimizes refrigerant flow, improving cooling efficiency, reducing hot/cold swings, and enhancing comfort.
Modern R‑32 Refrigerant Ready: Engineered for R‑32 refrigerant, offering better heat transfer and lower environmental impact compared to older blends.
Horizontal Multi‑Positional Design:21″ height horizontal configuration fits HVAC closets, attics, or crawlspace installations with limited vertical space.
Durable Coil Construction:Aluminum tube‑and‑fin coil resists corrosion and supports reliable heat exchange for steady performance over time.
Moisture & Rust Protection:Foil‑faced insulation and a corrosion‑resistant drain pan help reduce moisture buildup and extend service life.
Service‑Friendly Access: Front‑accessible panels and standardized connections make installation and maintenance easier and faster.
Q&A
Q: What capacity and type is the Goodman CHPTA4830C3 evaporator coil? A: The Goodman CHPTA4830C3 4 Ton Horizontal Cased Evaporator Coil is a 4 ton horizontal cased indoor evaporator coil designed for residential split HVAC systems.
Q: What refrigerant is this coil designed for? A: This coil is optimized for R‑32 refrigerant, supporting modern efficiency and lower environmental impact.
Q: Does it include a metering device? A: Yes — it comes with a factory‑installed thermal expansion valve (TXV) for accurate and efficient refrigerant flow control in both cooling and heat pump applications.
Q: What are the installation orientation and physical dimensions? A: Designed for horizontal installation (left/right), with a 21″ depth for easier attic or crawl space access, and typical cabinet dimensions around 21″ H × 30″ W × 21″ D.
Q: What materials and build quality features does it have? A: Features an all‑aluminum coil optimized for heat transfer and corrosion resistance, a galvanized steel cased cabinet, and foil‑faced insulation to reduce condensation.
Q: What durability and maintenance features are included? A: The coil includes rust‑resistant, UV‑protected thermoplastic drain pans with low water retention and secondary drain connections, plus a single front access panel for easier service.
Q: Is it certified and safe? A: Yes — the CHPTA4830C3 is AHRI certified and ETL listed, confirming tested performance and safety standards.
Q: What line size connections does it use? A: It typically uses a 3/8″ liquid line and 7/8″ suction line for standard residential installations.
Q: What applications is it best suited for? A: Ideal for residential air conditioning and heat pump systems when paired with a compatible outdoor unit and indoor blower.
Maintenance Tips
Replace or clean air filters every 1–3 months to maintain airflow and prevent dust buildup on the coil.
Inspect and clean the evaporator coil annually to ensure efficient heat transfer and consistent cooling.
Keep the condensate drain pan and drain line clear to prevent water overflow, clogs, and mold growth.
Check refrigerant line connections (3/8" liquid, 7/8" suction) for leaks or damaged insulation.
Verify TXV operation to ensure proper refrigerant flow and optimal system performance.
Inspect the coil cabinet and insulation to prevent air leaks and condensation issues.
Maintain a clean surrounding area to reduce dust and moisture near the unit.
Schedule annual professional HVAC service to check coil condition, refrigerant charge, and overall system performance.
