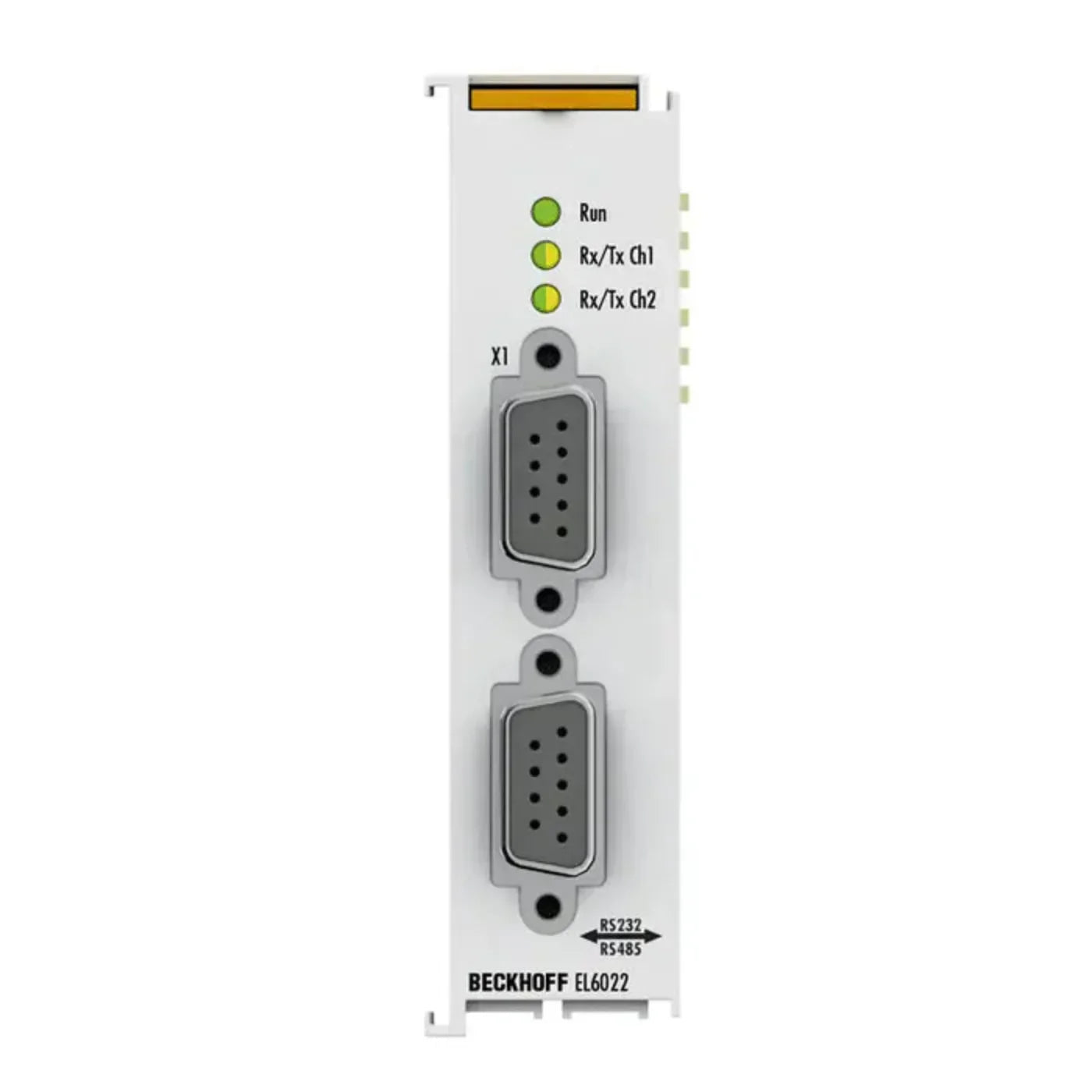

The EL6022 serial interface enables the connection of devices with two RS422/RS485 interfaces. The devices connected to the EL6022 EtherCAT Terminal communicate with the automation device via the Coupler. The draft communication channel operates independently of the higher-level EtherCAT system in full duplex mode with 300 baud up to 115.2 kbaud. The RS422/RS485 interfaces guarantee high interference immunity through electrically isolated signals. The EL6022 can provide 2 x 5 V/20 mA out of the E-bus supply (electrically isolated, short-circuit proof) for the supply of external devices.
Specifications
Manufacturer
BECKHOFF
Part Number
EL6022
Connection technology
D-sub, 9-pin
Data transfer channels
2
Data transfer rates
300…115,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit
Interfaces
2 x RS422/RS485
Line impedance
120 Ω
Cable length
approx. 1000 m twisted pair
Providing external supply
2 x max. 5 V/20 mA, out of E-bus supply, short-circuit proof
