Beckhoff EtherCAT Terminal, 1-Channel Encoder Interface, Incremental, 5 V DC (DIFF RS422, TTL), 1 MHz - EL5101

Beckhoff EtherCAT Terminal, 1-Channel Encoder Interface, Incremental, 5 V DC (DIFF RS422, TTL), 1 MHz - EL5101

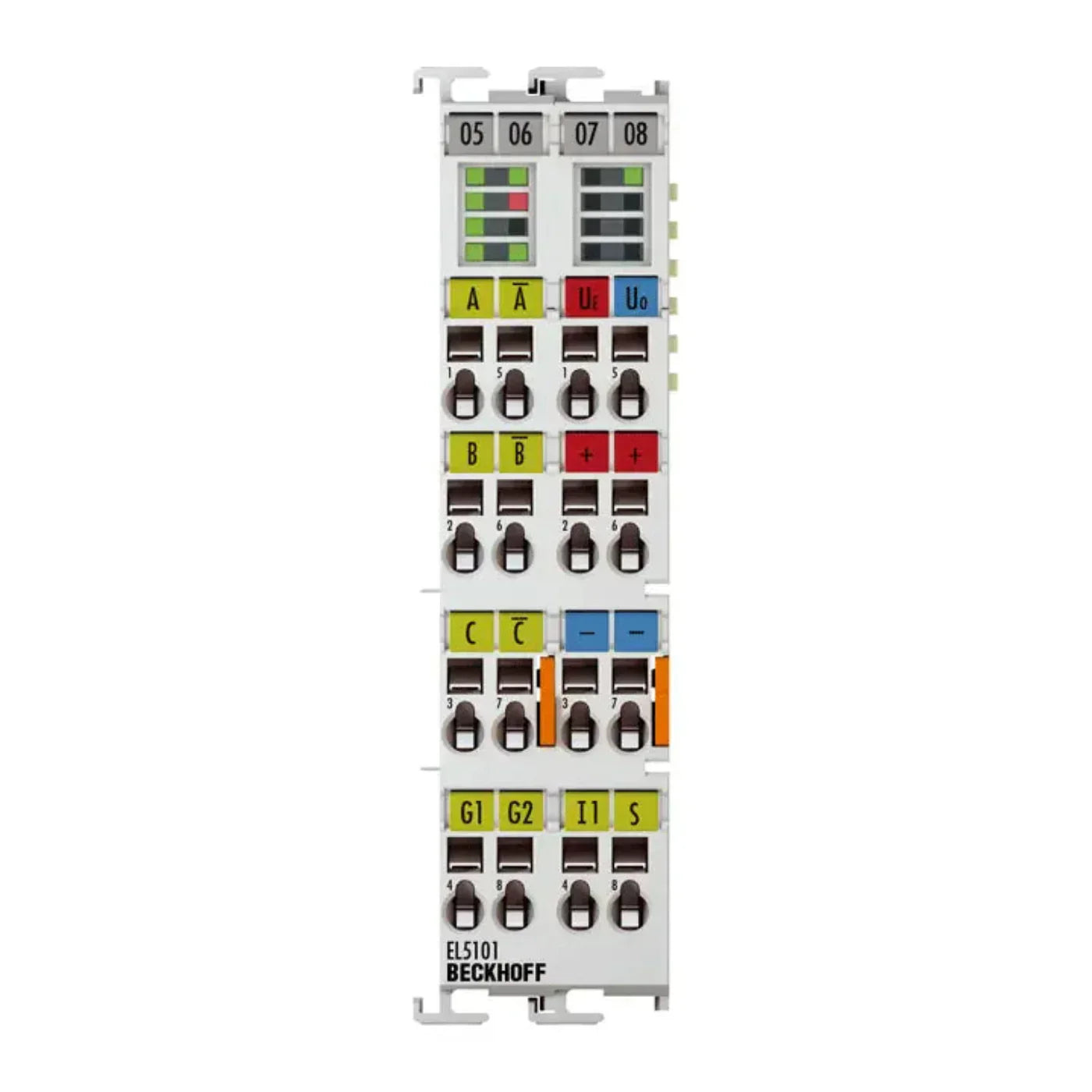

The EL5101 EtherCAT Terminal is an interface for the direct connection of incremental encoders with differential inputs (RS422). A 32/16 bit counter with a quadrature decoder and a 32/16 bit latch for the zero pulse can be read, set or enabled. Incremental encoders with alarm outputs can be connected at the interface's status input. Interval measurement with a resolution of up to 100 ns is possible. The gate input allows the counter to be halted. The counter state is taken over with a rising edge at the latch input.

Specifications

What Our Experts Think

• High Performance: Beckhoff control systems offer powerful computing capabilities for demanding industrial automation tasks.

• Energy-Efficient: Designed with optimized power usage to support sustainable, low-energy operations.

• Durable & Reliable: Built to withstand harsh industrial environments with high-quality components and rugged designs.

• Quiet Operation: Fanless or low-noise cooling systems in many models ensure minimal disruption in sensitive areas.

• Easy Installation: Modular design allows for quick and flexible setup in a wide range of industrial applications.

Q&A

Q: What is Beckhoff equipment used for?
A: Beckhoff products are used for industrial automation, providing control, motion, and communication solutions for a variety of industries.

Q: What features are included in Beckhoff automation systems?
A: Features include high-performance CPUs, modular I/O systems, compact form factors, and support for leading industrial communication standards like EtherCAT.

Q: Are Beckhoff products energy-efficient?
A: Yes, many Beckhoff systems are designed to reduce energy consumption while maintaining high-speed, precise control.

Q: How does Beckhoff compare to other automation brands?
A: Beckhoff stands out for its open automation systems, flexible designs, and strong performance in both small and large-scale industrial projects.

Maintenance Tips

• Keep Units Clean: Regularly remove dust and debris from ventilation openings and surfaces.

• Check Connections: Inspect cables and connectors periodically for wear or damage.

• Monitor Software Updates: Keep firmware and software updated to ensure optimal performance and security.

• Temperature Control: Ensure devices are operated within recommended temperature ranges to avoid overheating.

• Annual System Check: Have a technician perform a full inspection and preventive maintenance annually.
