Baumalight S14 Stump Grinder For Mini Skid Steers - BML-S14-S250-MU

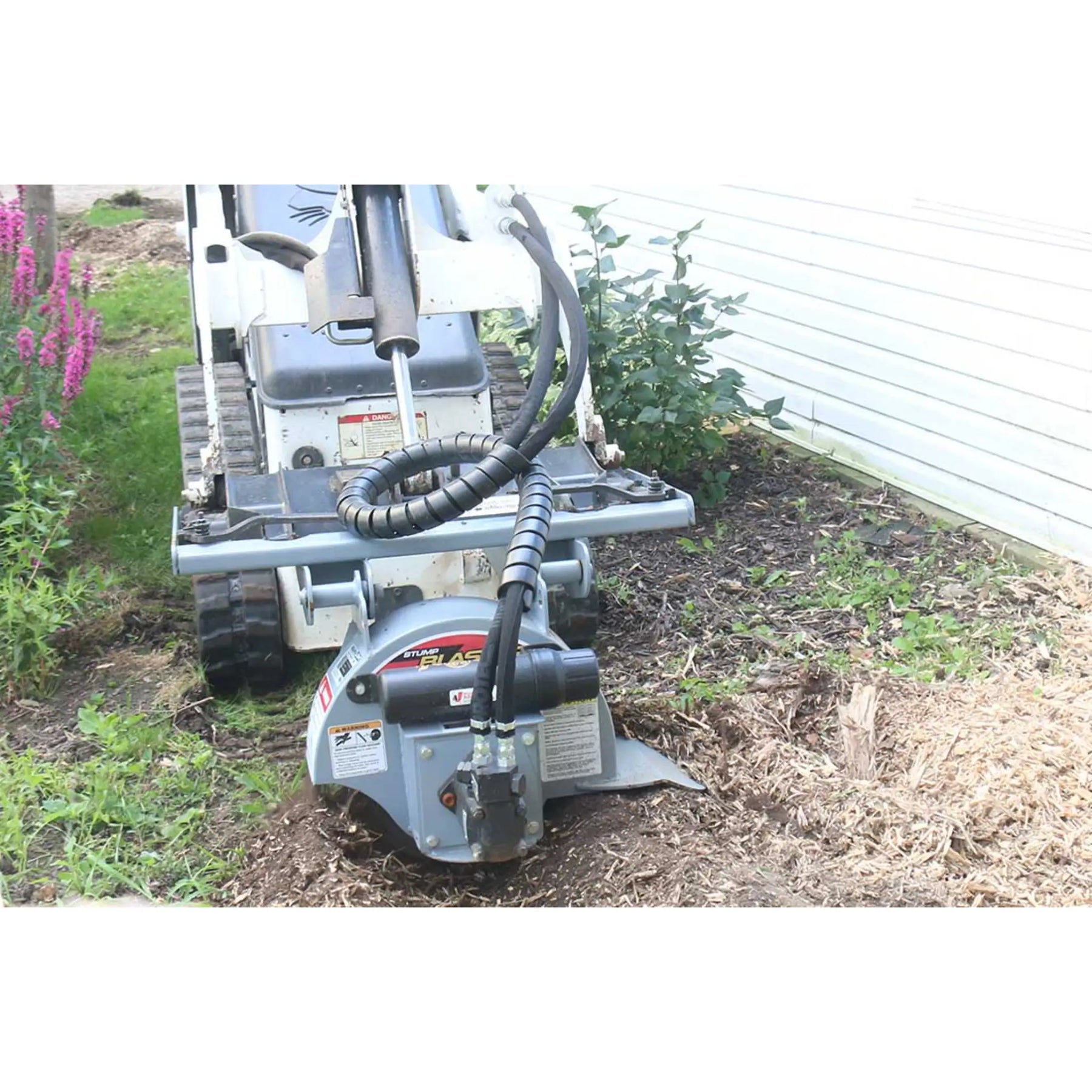

Experience superior stump removal with the Baumalight S14 Mini Skid Steer Stump Grinder. It features a hydraulic drive for optimal torque and durable, rotatable carbide teeth for extended use. The robust design includes a heavy-duty deflector and a solid rotor, ensuring smooth operation and deep cutting up to 10 inches below ground.

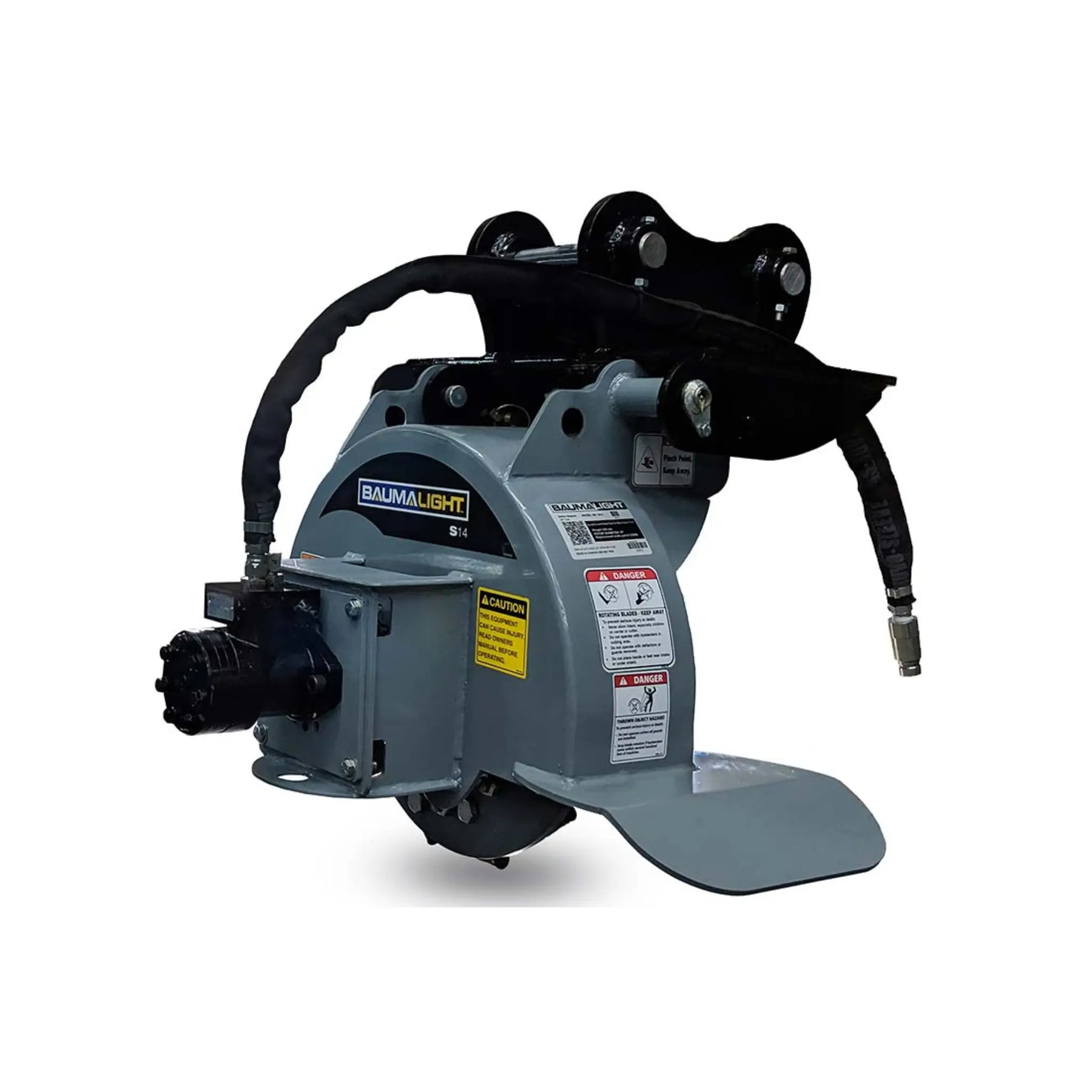

Baumalight S14 Stump Grinder

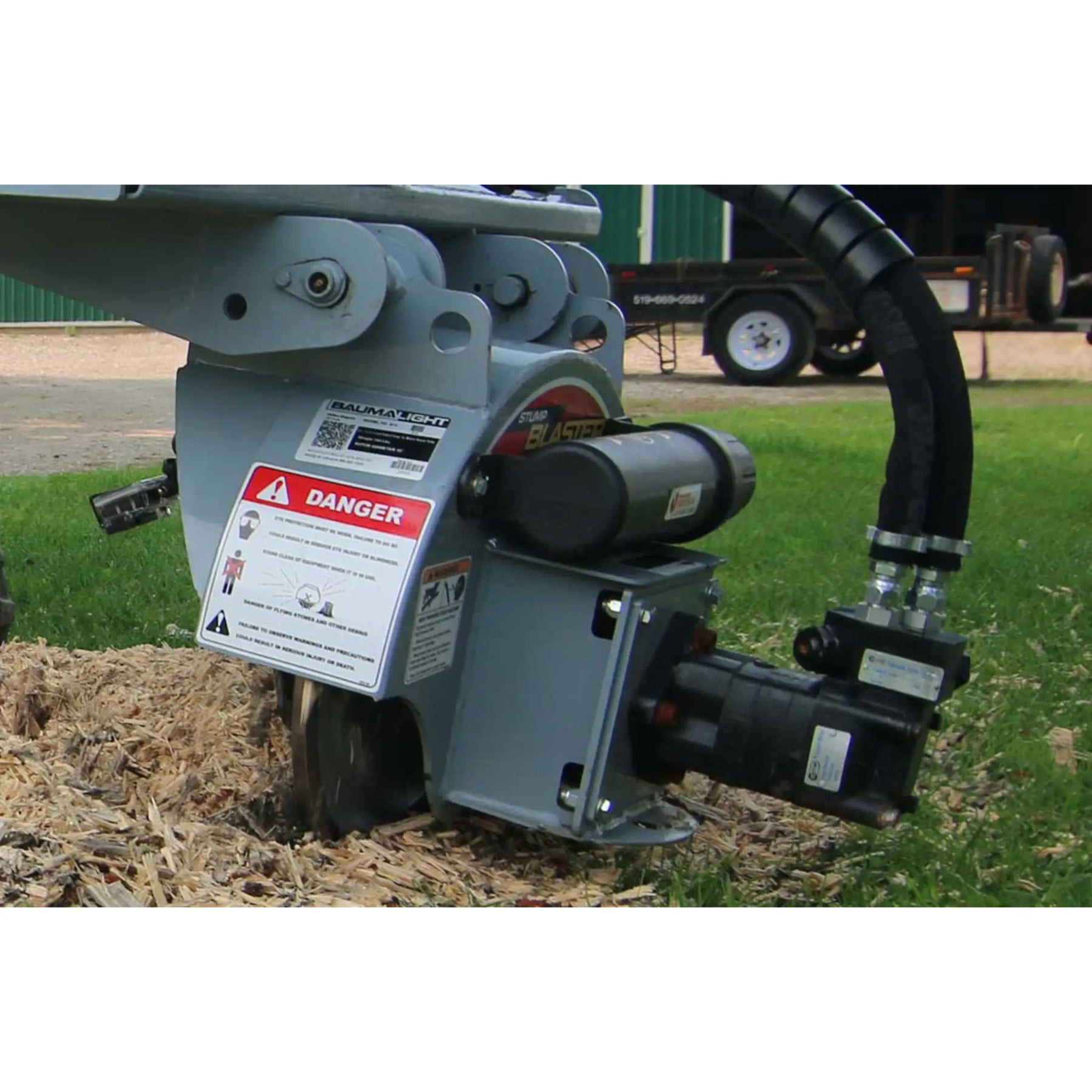

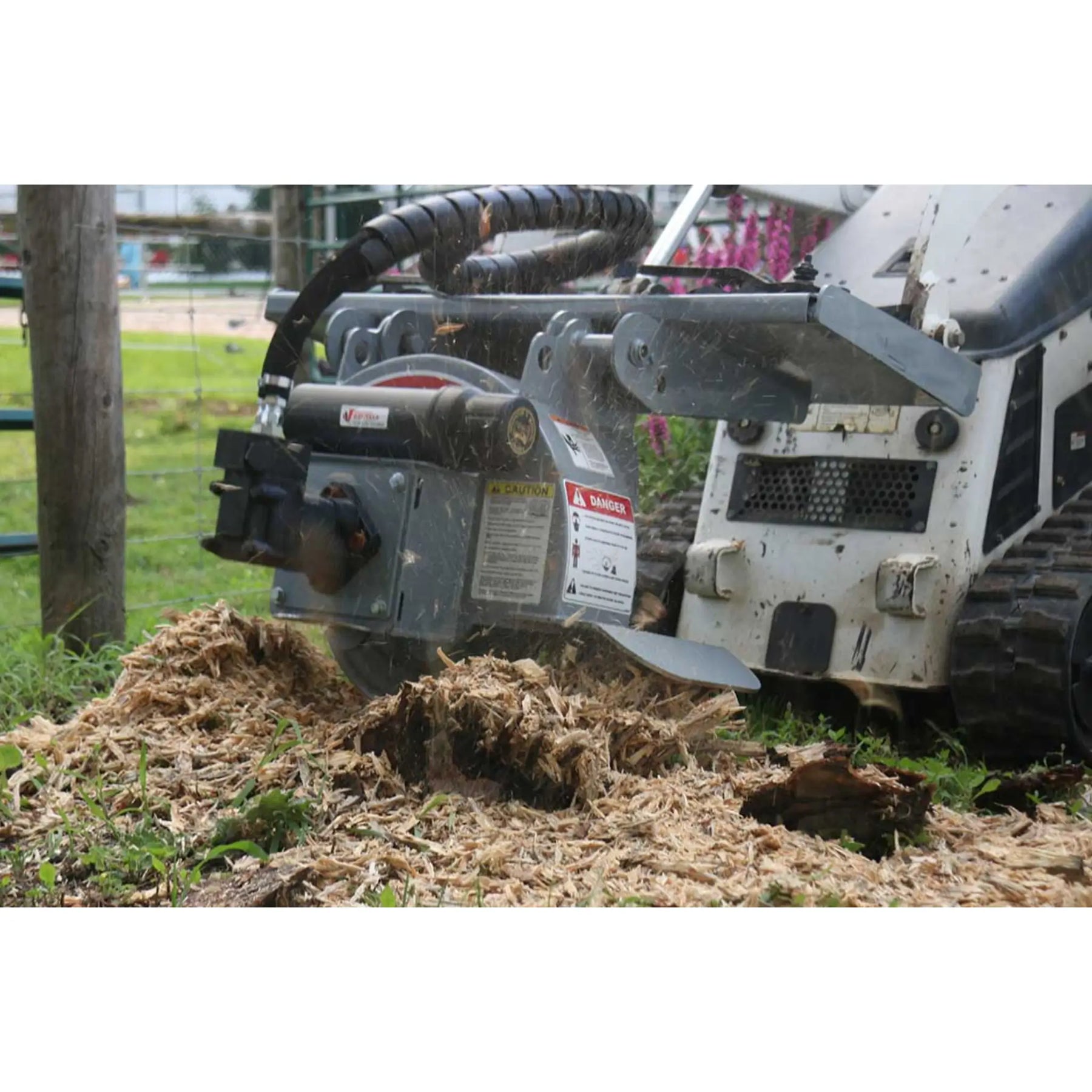

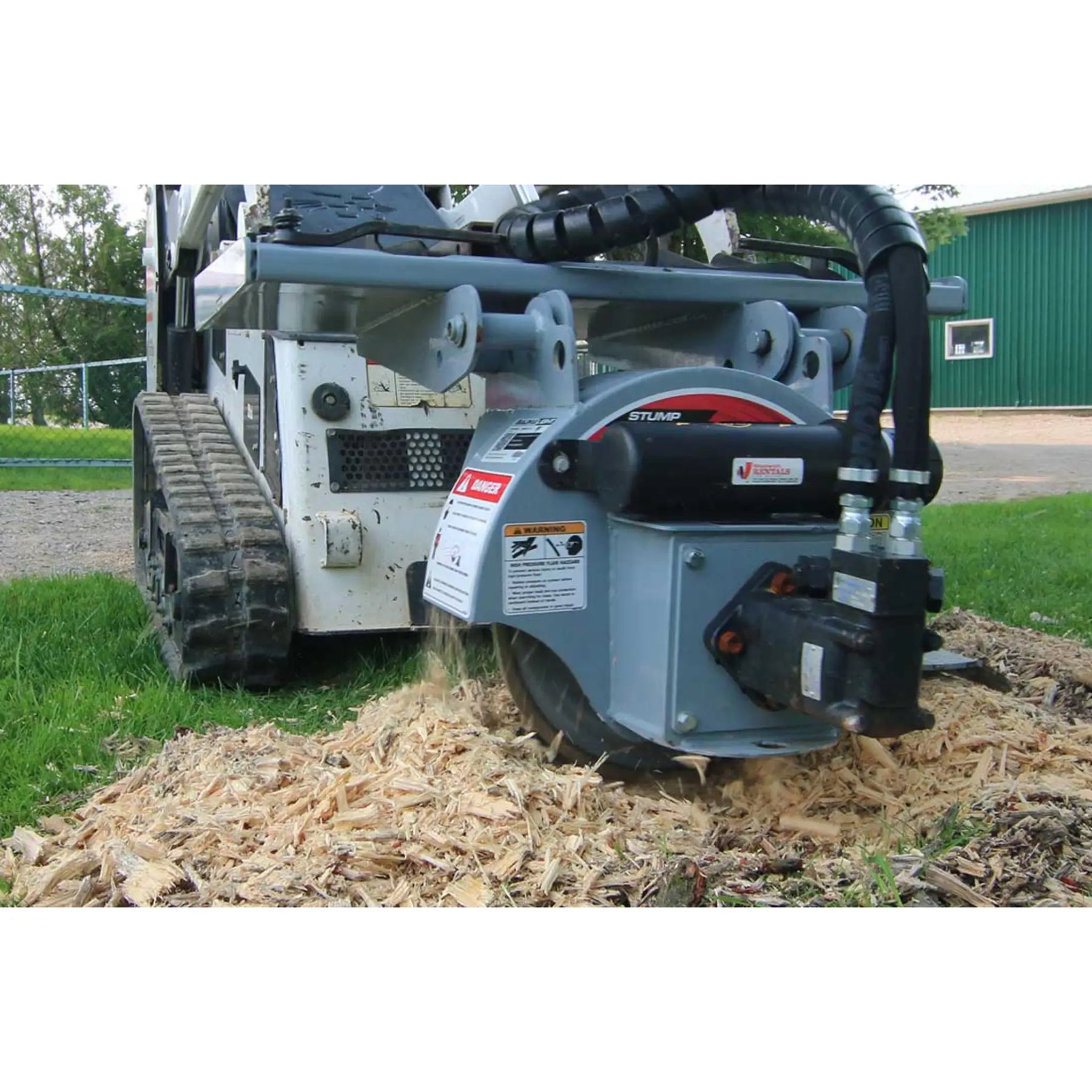

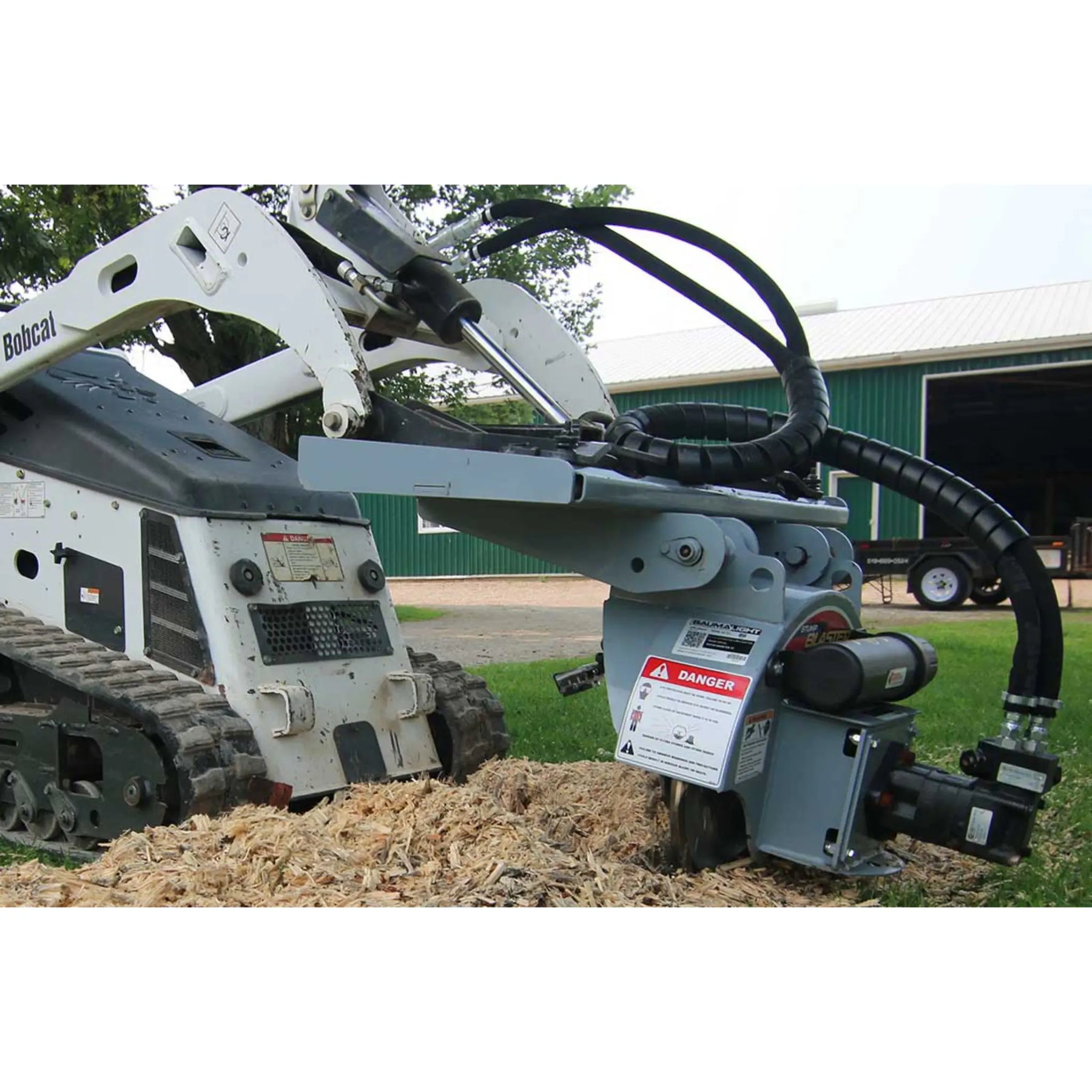

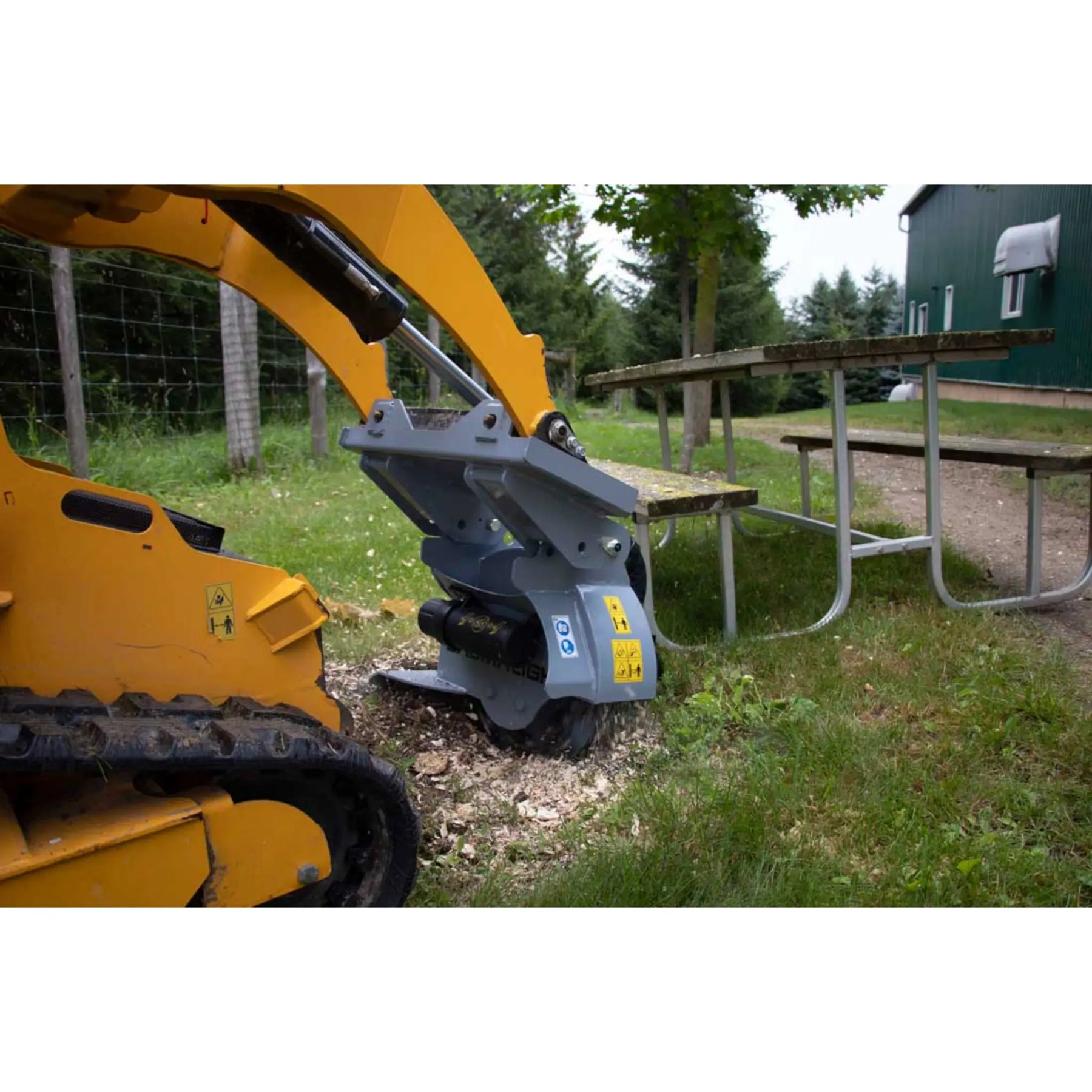

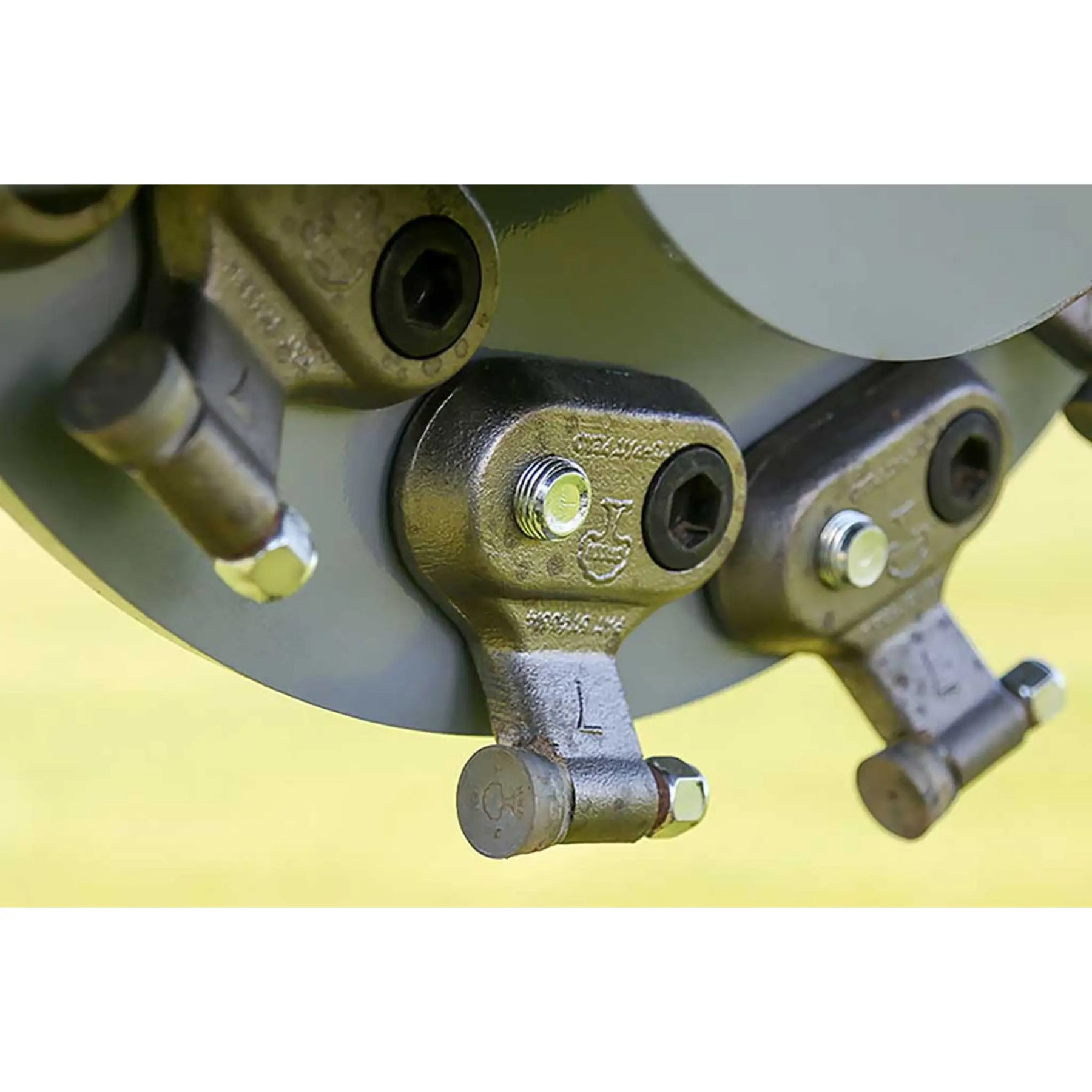

Experience unrivaled efficiency with the Baumalight S14 Mini Skid Steer Stump Grinder, meticulously engineered for robust operation without an electrical connection. Its direct flow hydraulic drive delivers optimum torque and RPM, ensuring powerful performance with a specialized cutting head. Designed to keep operations straightforward, the S14 boasts round, rotatable carbide teeth that extend the usability of each tooth through three rotations, providing prolonged, aggressive cutting action with minimal maintenance.
The S14 is not just potent but also user-friendly. It offers an exceptional view of the grinding process, a vital feature for precision and safety. The heavy-duty fixed deflector efficiently channels debris, maintaining a clean work area. This compact unit reaches up to 10 inches below ground, allowing for thorough stump removal. The design facilitates excellent access to tight spaces, making it an indispensable tool for both commercial and rental use.

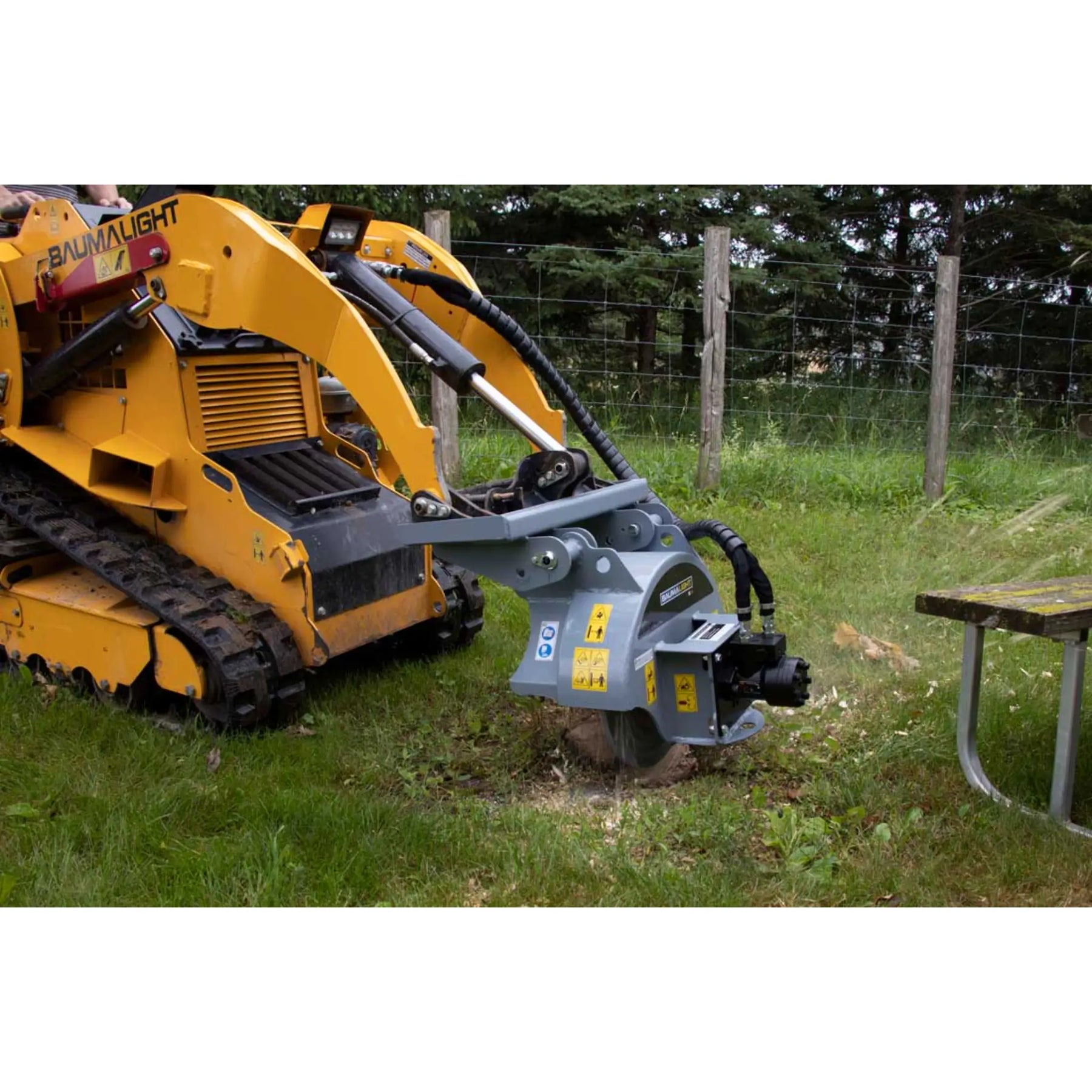

Durability meets innovation in the S14's construction. The robust 0.5-inch thick steel rotor forms a solid base for the high-speed teeth, ensuring steady, flex-free operation even in the toughest conditions. This grinder comes equipped with six free replacement teeth, enhancing value and convenience for users. Match the hydraulic motor to your equipment’s flow rate for best results, ensuring seamless integration and optimum performance from this elite Baumalight model.
Specifications
| Model No. | S14 | S16 | S18 | S24 | S28 | S40 |
|---|---|---|---|---|---|---|
| Recommended HP Size | Mini Skidsteer | Mini Skidsteer | 25-80 | 30-80 | 50-120 | 50-120 |
| Maximum Carrier Size | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI |
| Motor Type | Gerotor | Bent Axis Piston | Gerotor | Gerotor | Gerotor | Bent Axis Piston |
| Hydraulic GPM | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart |
| Rotor Size | 18" | 18" | 24" | 24" | 24" | 24" |
| Number of Teeth | 12 | 24 | 34 | 34 | 34 | 20 |
| Tooth Part number | H3000 | H3000 | S1000 | S1000 | S1000 | H3000 |
| Tooth Construction | High speed | High speed | Planer | Planer | Planer | High speed |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No limit | No limit | No limit | No limit | No limit | No limit |
| Cutting Depth - Below Ground | 6" | 6" | 10" | 10" | 10" | 24" |
| Maximum Cutting Depth - Per Pass | 2" | 2" | 5" | 6" | 6" | 1" |
| Maximum Horizontal Cut | 12" | 12" | 22" | 22" | 22" | 22" |
| Swing Arc | Self-feeding | 56° | Self-feeding | 60° | 63° | 85° |
| Hub Torque | 150 Ft.-Lbs. | - | 250 Ft.-Lbs. | 250 Ft.-Lbs. | 803 Ft.-Lbs. | - |
| Over Torque Protection | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Remote |
| Hitch | 1" pivot pins | 1" pivot pins | Mini Plate | Quick Attach | Quick Attach | Quick Attach |
| No. of Remotes Required - Hydraulic | 1 | 1 | 1 | 1 | 1 | 1 |
| Requires 12 Volt DC | No | Yes | No | Yes | Yes | Yes |
| Unit Weight (Shipping) Lbs. | 394 | 400 | 642 | 995 | 995 | 1,200 |
Motor options - stump cutting time chart
STUMP CUTTING TIMES BASED ON 24" STUMP
- Motor will run at this PSI but excess pressure is dumping over relief.
| Motor | Case Drain | PSI | 12 GPM | 15 GPM | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM | CC |
Motor Type |
RPM at MAX GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S250 Motor Available for : S14 |
Not Required | 2,500 | 50 min | 40 min | -- | -- | -- | -- | -- | 50 | Roller Vane | 910 |
| 3,000 | 40 min | 35 min | -- | -- | -- | -- | -- | |||||
|
S450 Motor Available for : S14,S18 |
Not Required | 2,500 | 60 min | 40 min | 35 min | -- | -- | -- | -- | 125 | Roller Vane | 520 |
| 3,000 | 50 min | 30 min | 30 min | -- | -- | -- | -- | |||||
|
S550 Motor Available for : S18 |
Recommended | 3,000 | -- | 30 min | 25 min | 20 min | 16 min | -- | -- | 130 | Roller Vane | 700 |
| 3,500* | -- | 30 min | 25 min | 20 min | 16 min | -- | -- | |||||
|
S650 Motor Available for : S18 |
Recommended | 3,000 | -- | -- | 40 min | 25 min | 15 min | 12 min | 10 min | 245 | Roller Vane | 540 |
| 3,500* | -- | -- | 30 min | 20 min | 10 min | 8 min | 6 min |
