Baumalight MP560 Brush Mulcher For PTO On Tractors - MP560-540
Experience the efficiency of Baumalight's MP560 Fixed Tooth Brush Mulcher to transform your land management tasks. Designed for PTO-driven tractors, this mulcher excels in maintaining fence lines and tackling entry-level contracting work. It features two robust tooth designs: Planer for precise, efficient cuts and Ripper for durable, impact-resistant shredding. Its unique cutting shield adjusts to optimize mulching angles, enhancing efficiency and output.

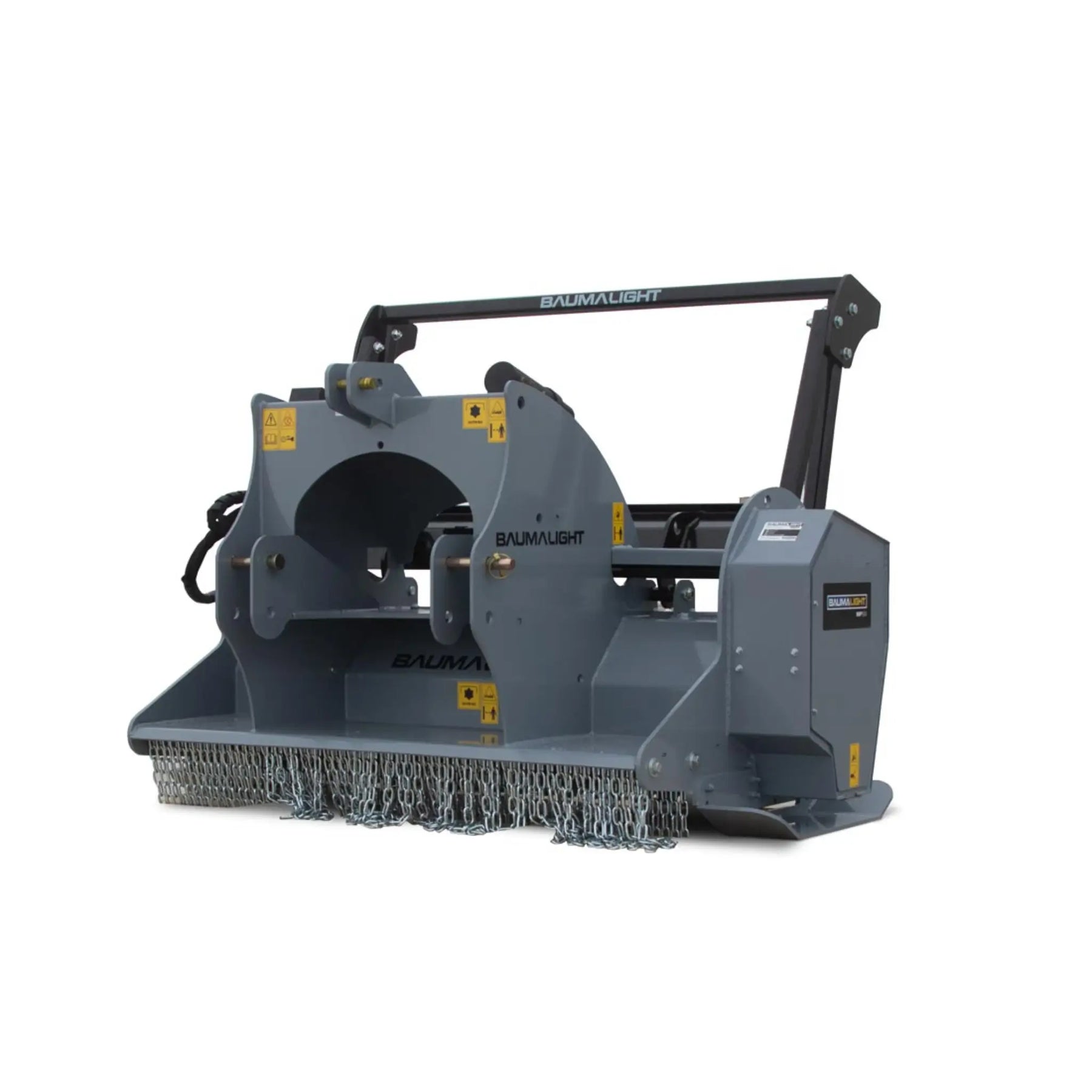

Baumalight MP560 Fixed Tooth Mulcher

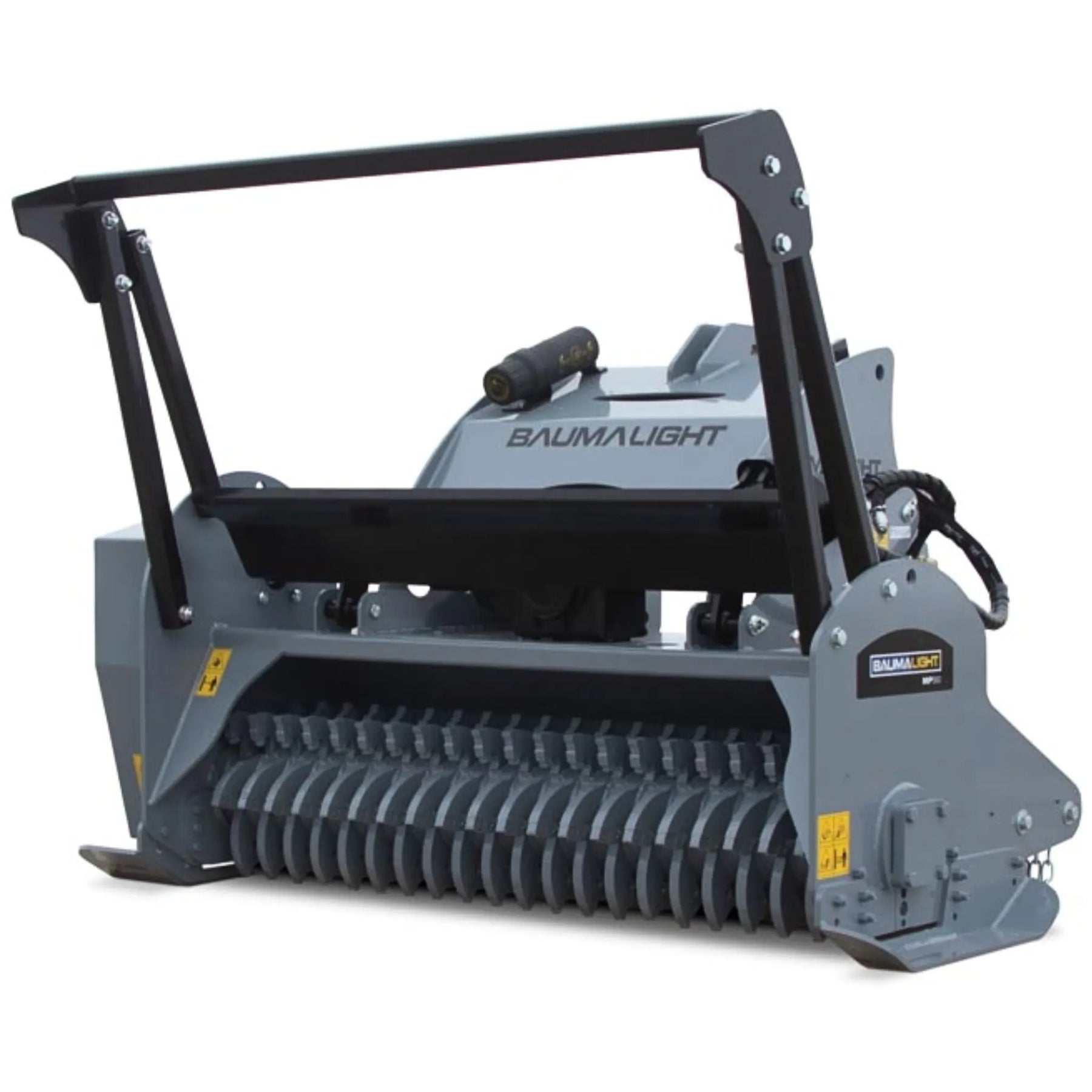

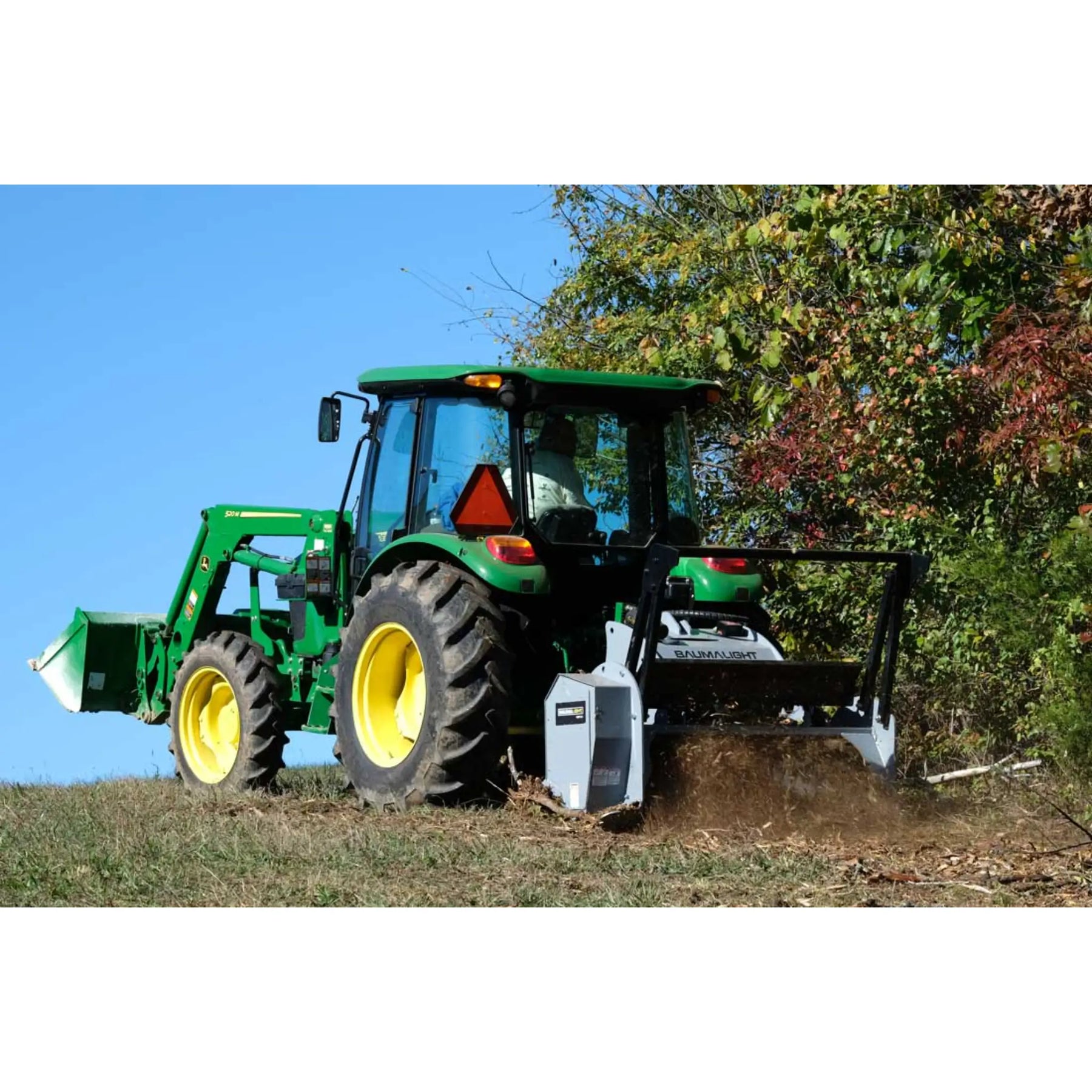

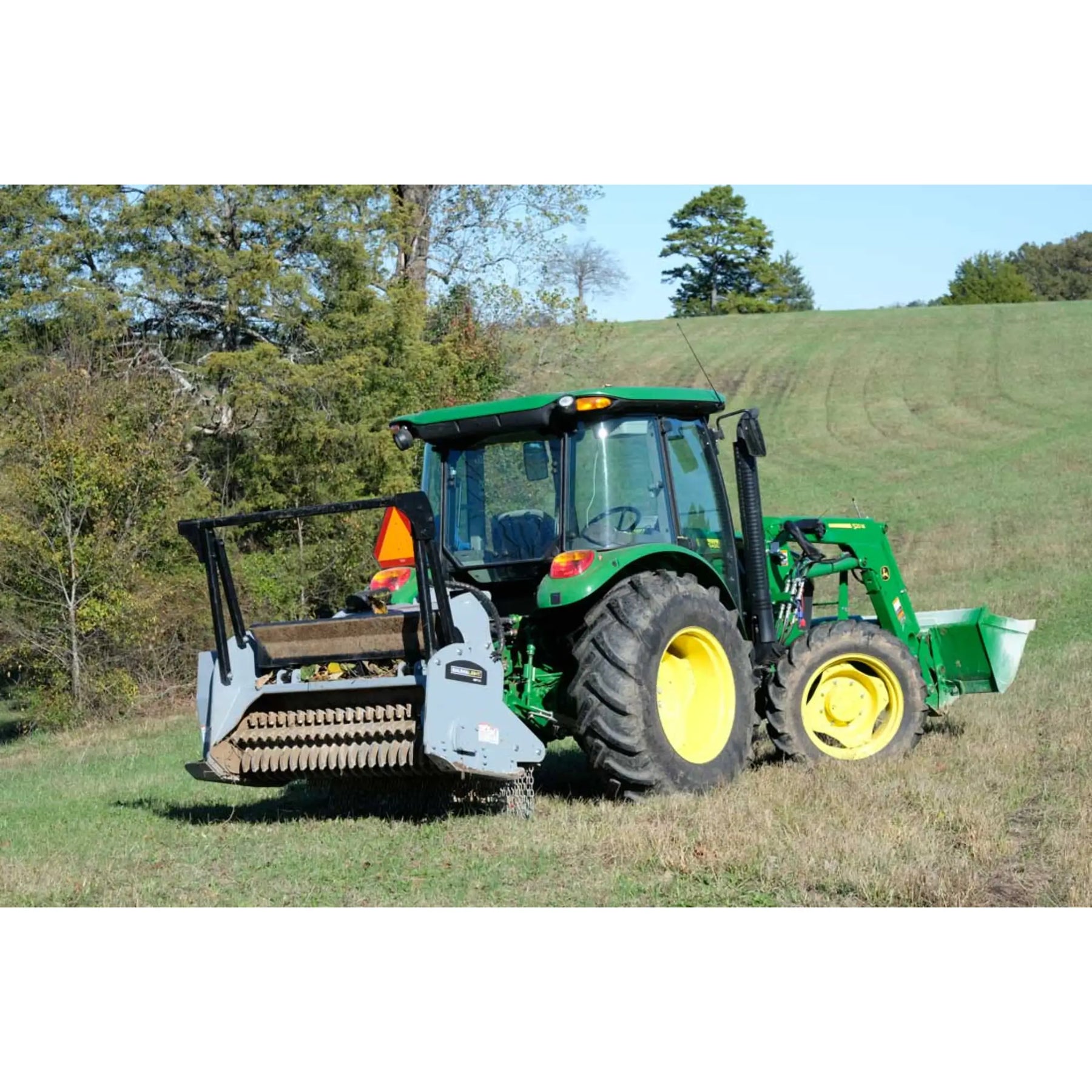

Harness the power of efficient land management with the Baumalight MP560 Fixed Tooth Brush Mulcher, specifically designed for Power Take Off(PTO) attachment on tractors. This robust mulcher features a masticating head ideal for maintaining fence lines and tackling entry-level contractor work. Its compatibility with 3-point hitch tractors enhances versatility for farm and light commercial use. The MP560 comes equipped with two distinct tooth styles: Planer for precise, efficient mulching and cutting, and Ripper for a more aggressive shredding action, making it suitable for below-grade work and more resilient against impacts from rocks and other hard objects.

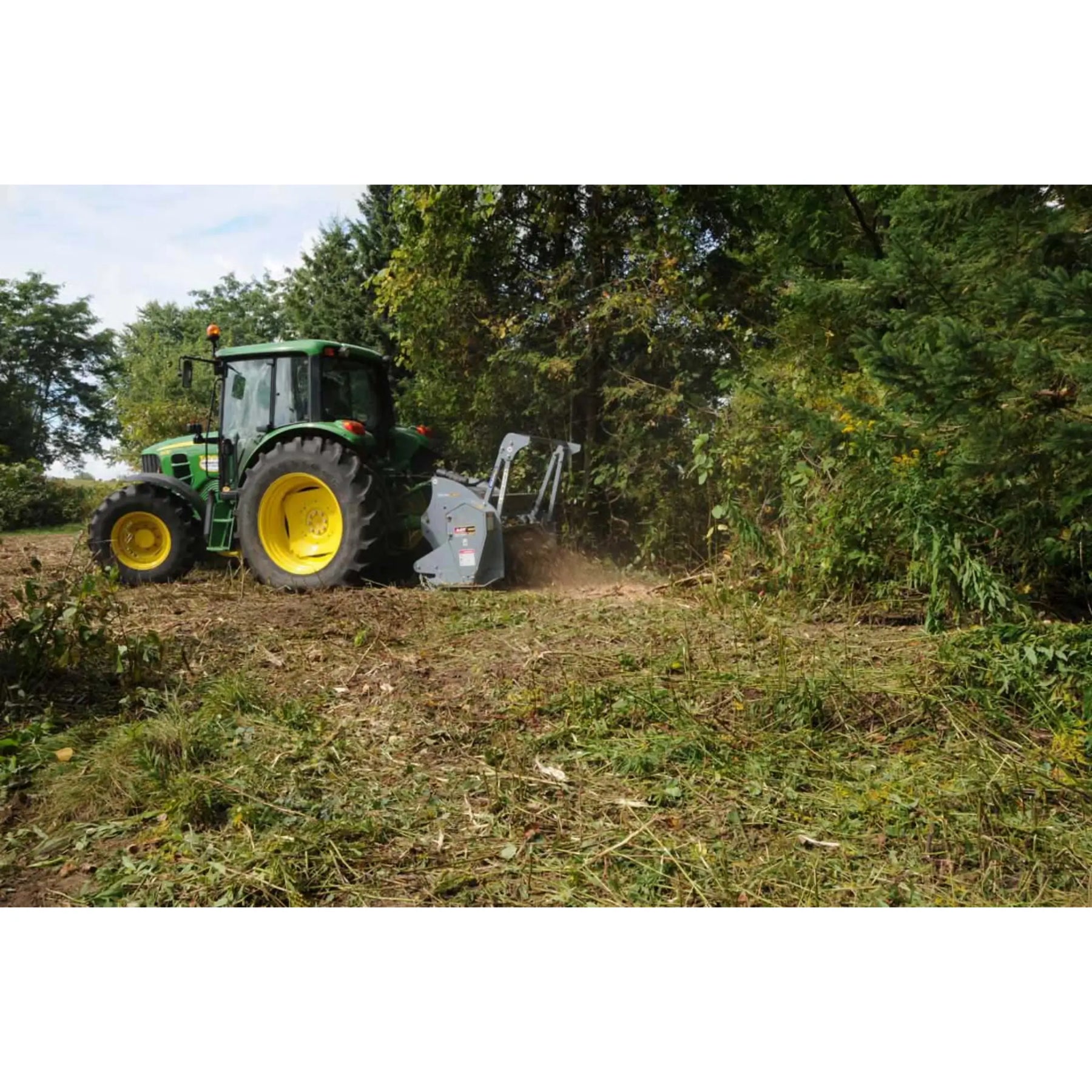

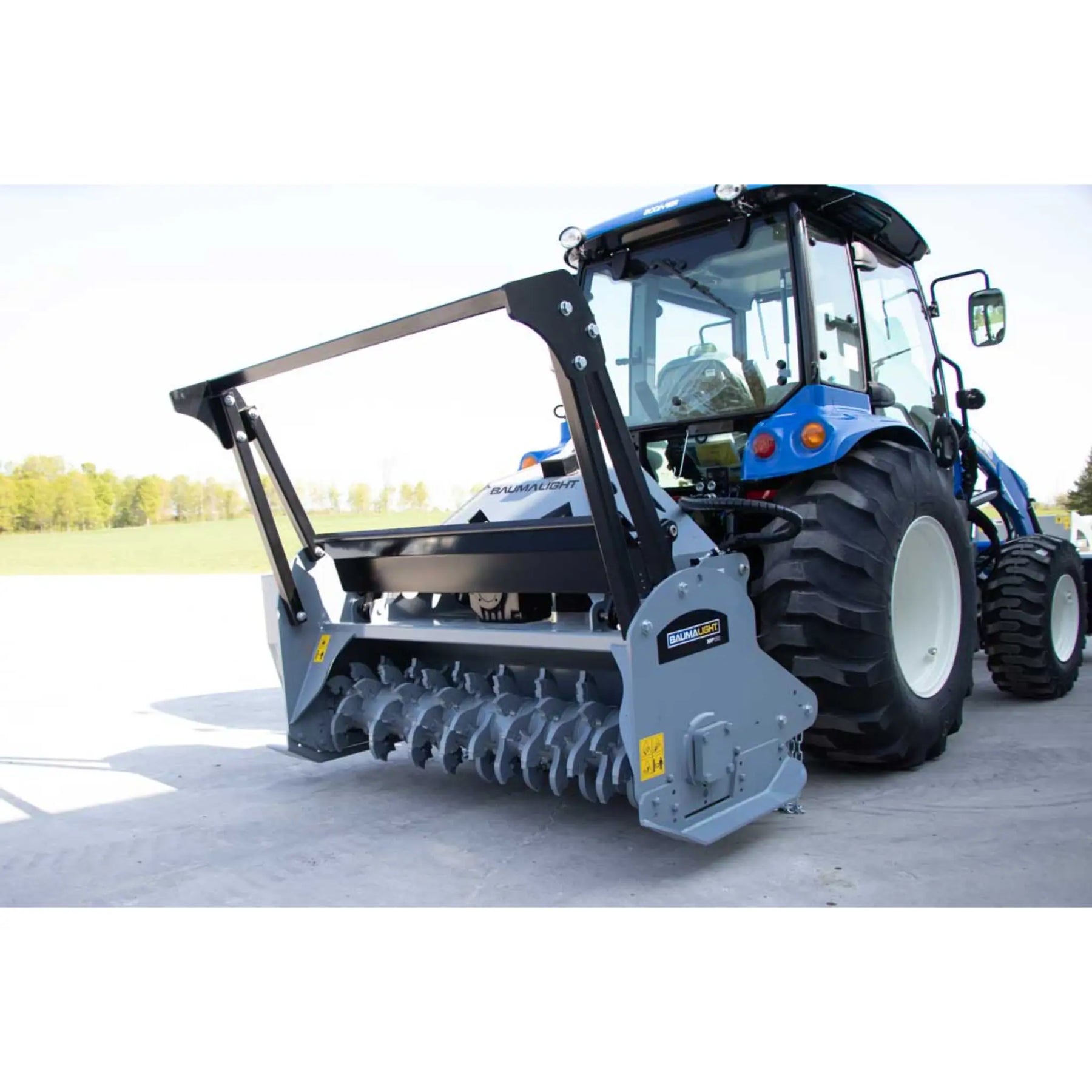

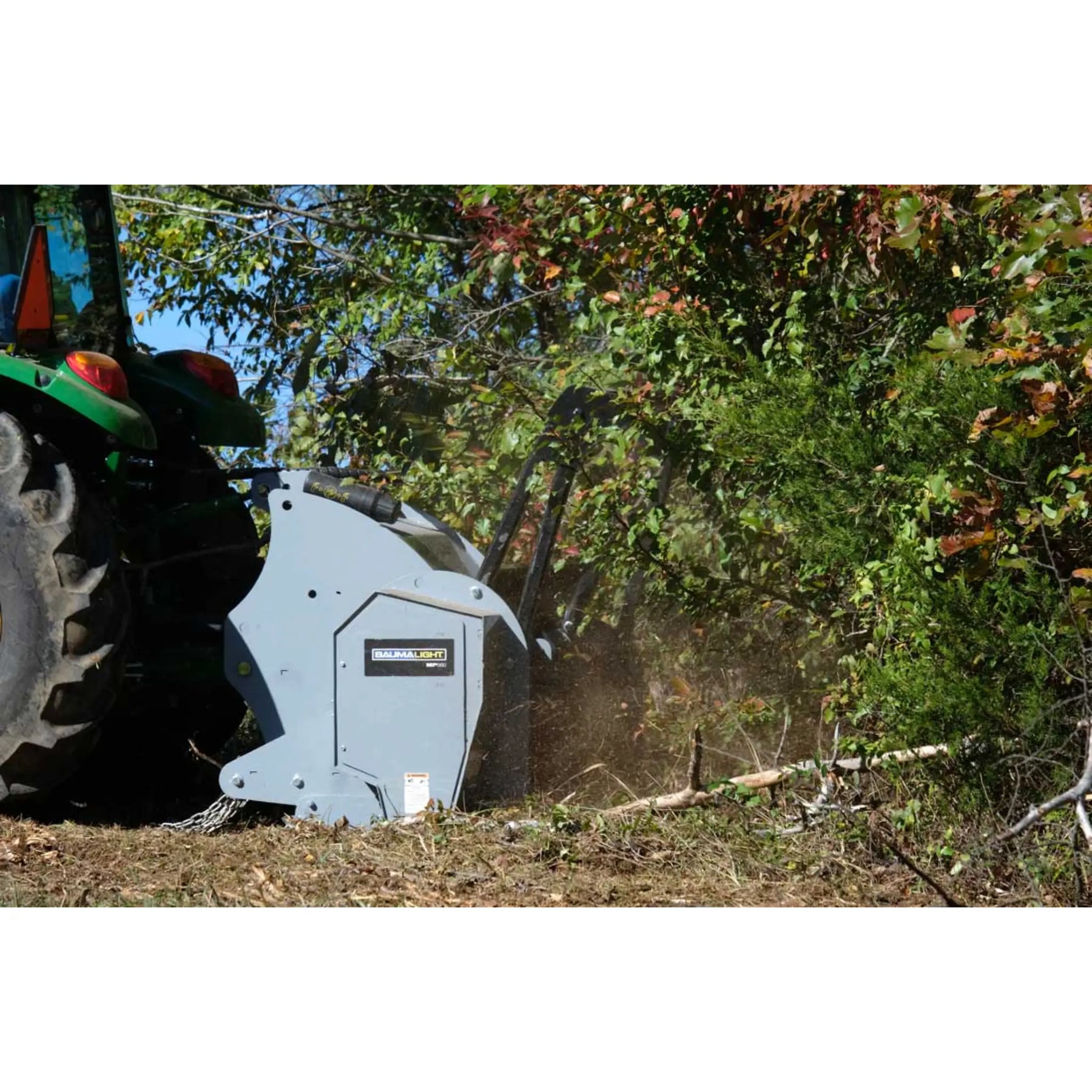

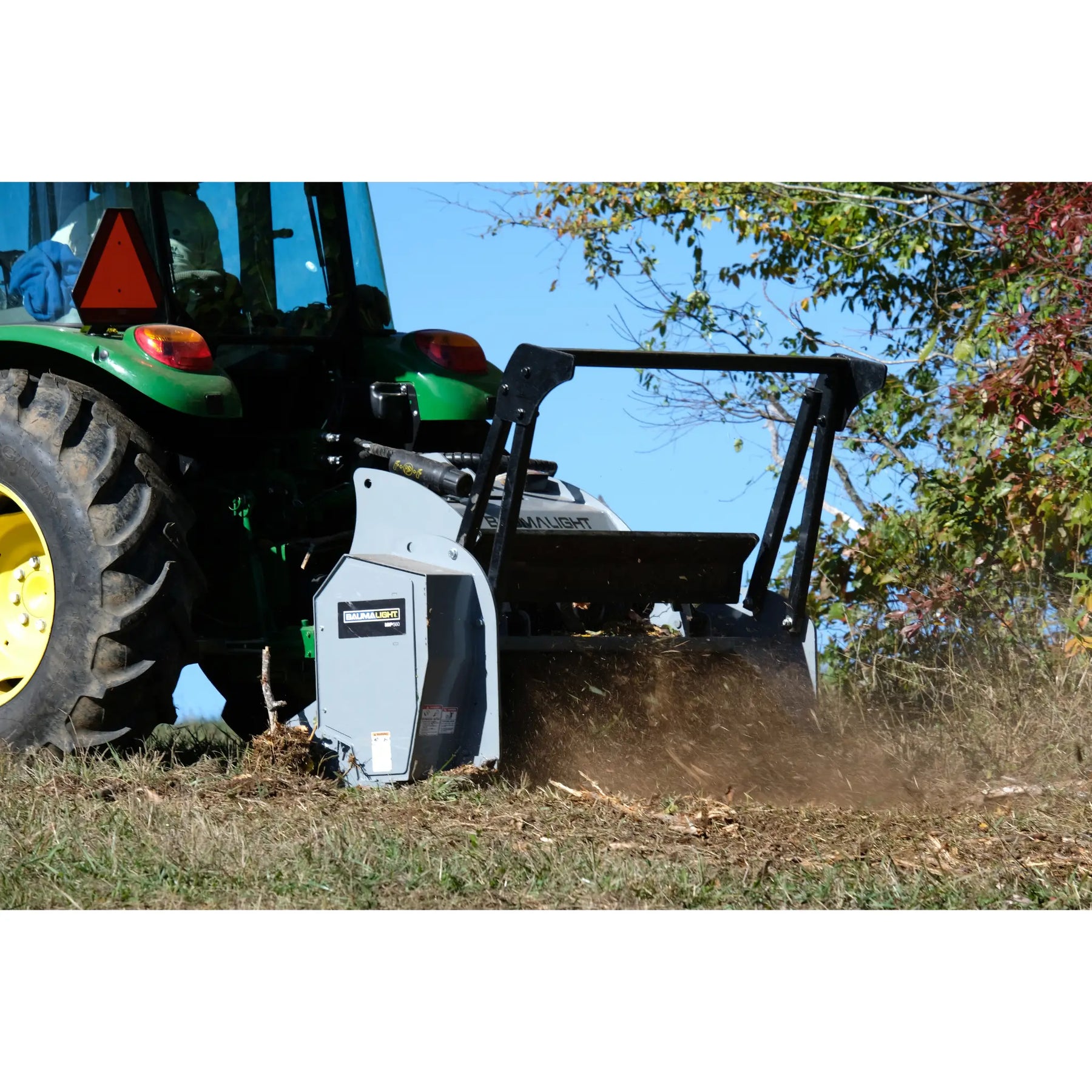

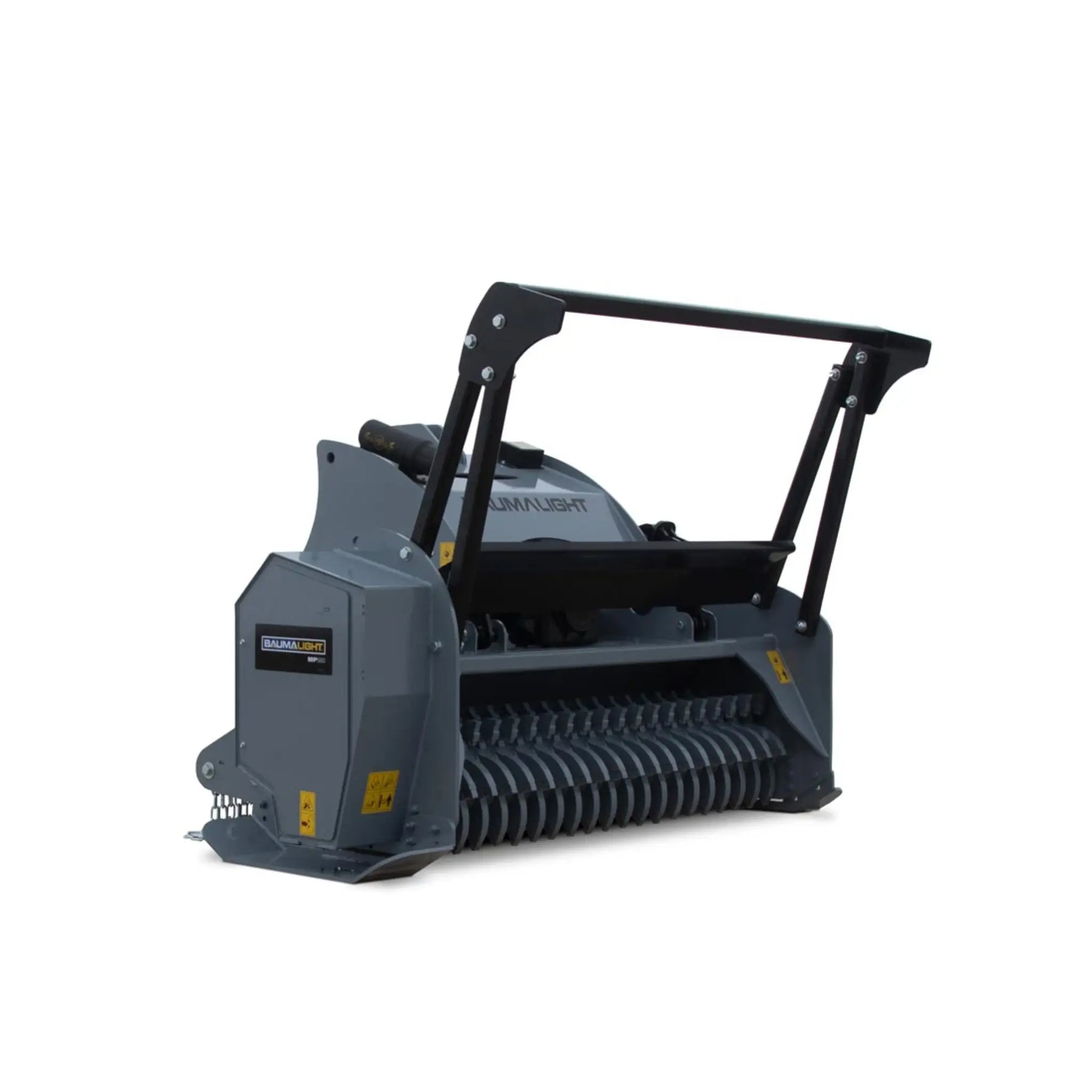

The innovative design of the MP560 includes an adjustable cutting shield, which allows operators to control the angle of attack and achieve optimal mulching results, whether dealing with large brush or aiming for finer mulch consistency. A unique forward drive capability enables the tractor to drive over mulched material, refining it further—a feature not limited to reverse operation as seen in typical mulchers. This direct drive system, from the engine through a heavy-duty gearbox to the mulching teeth, ensures maximum power and efficiency in clearing land.

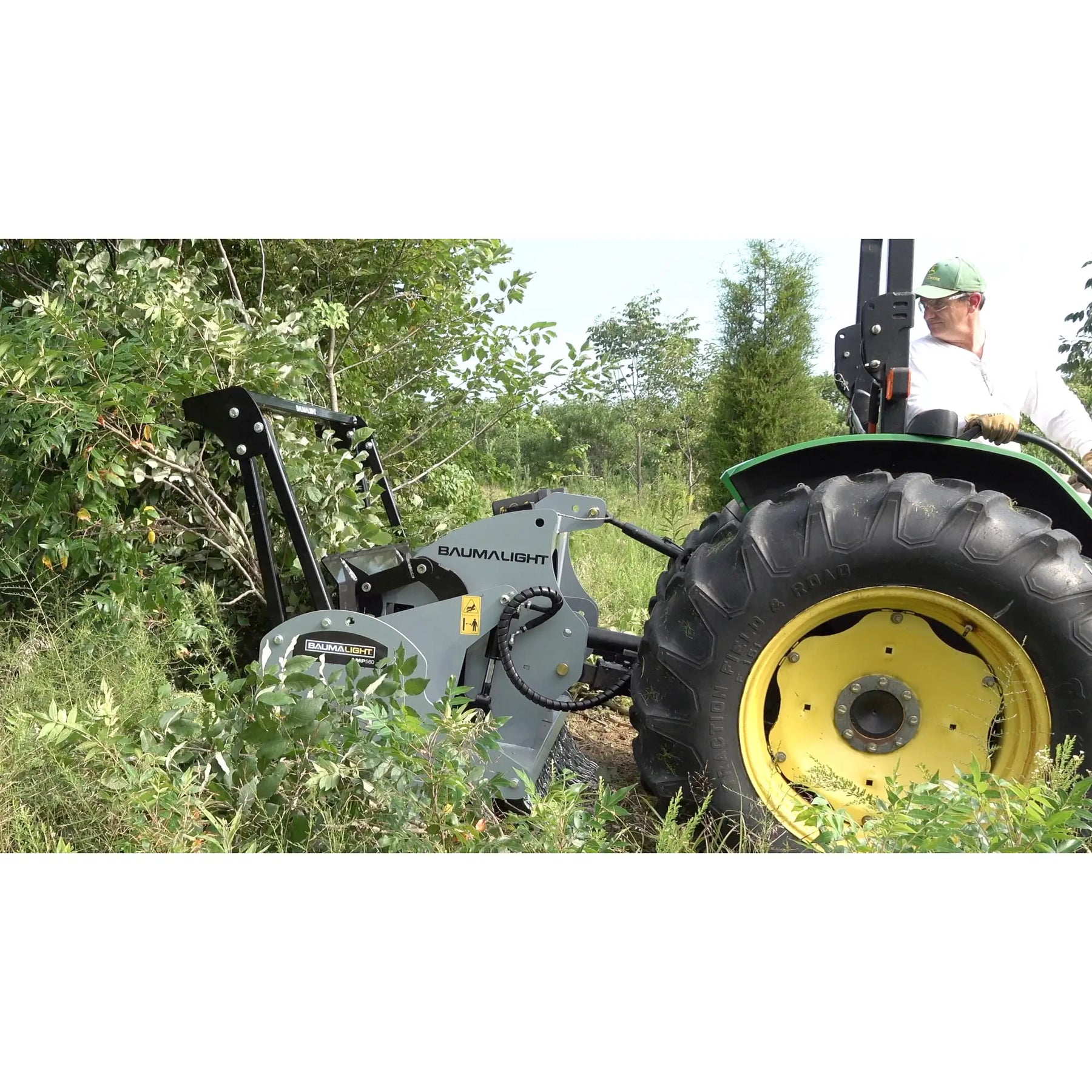

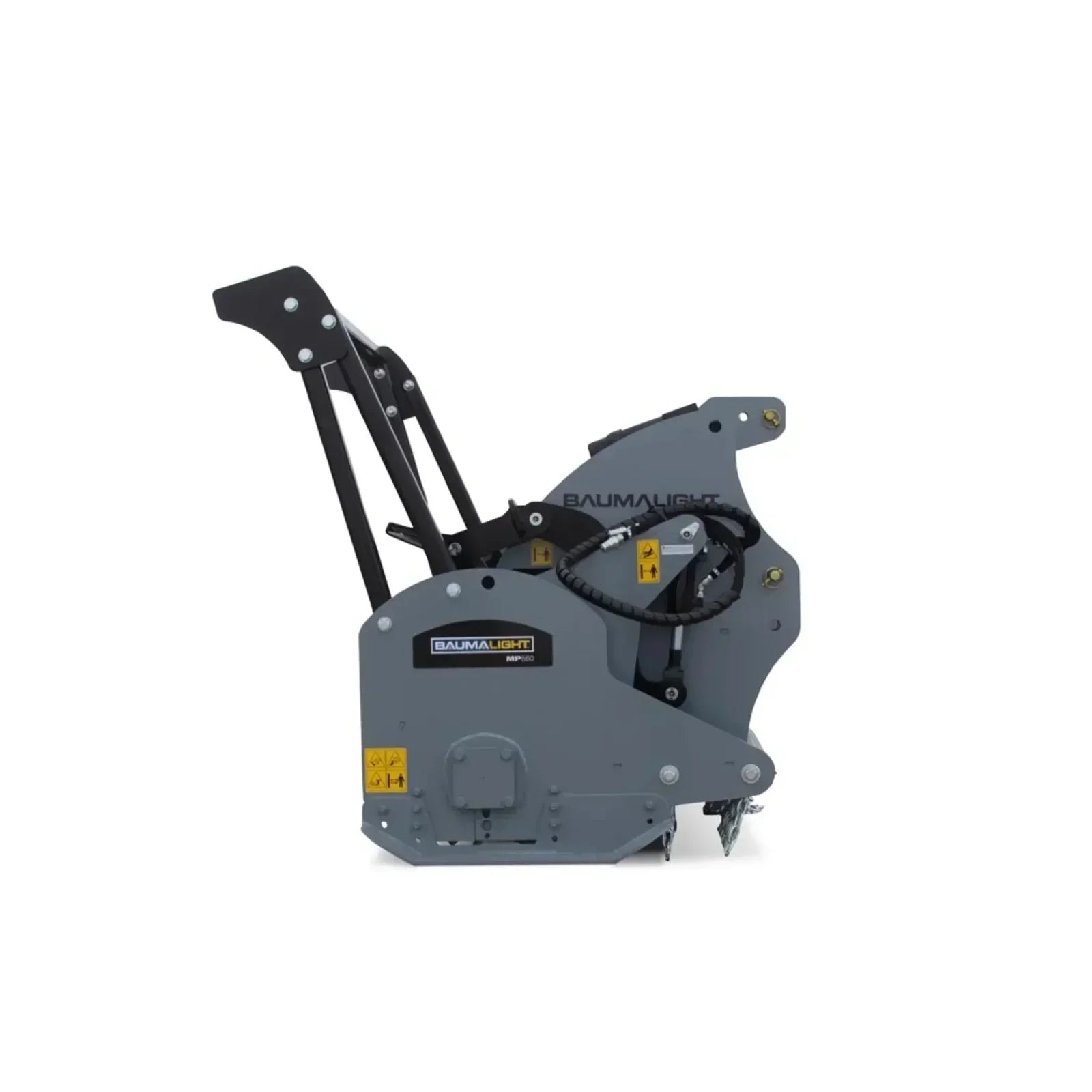

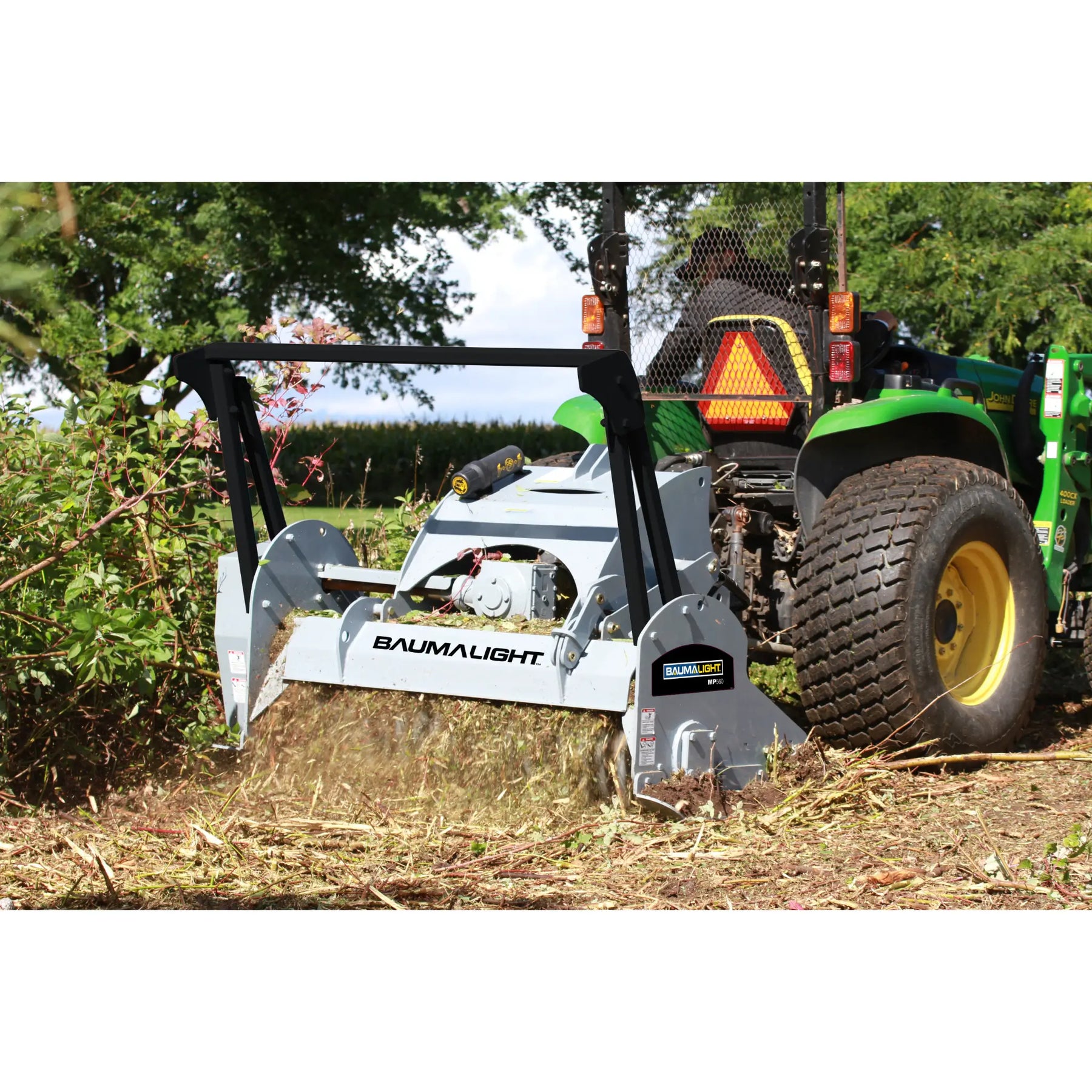

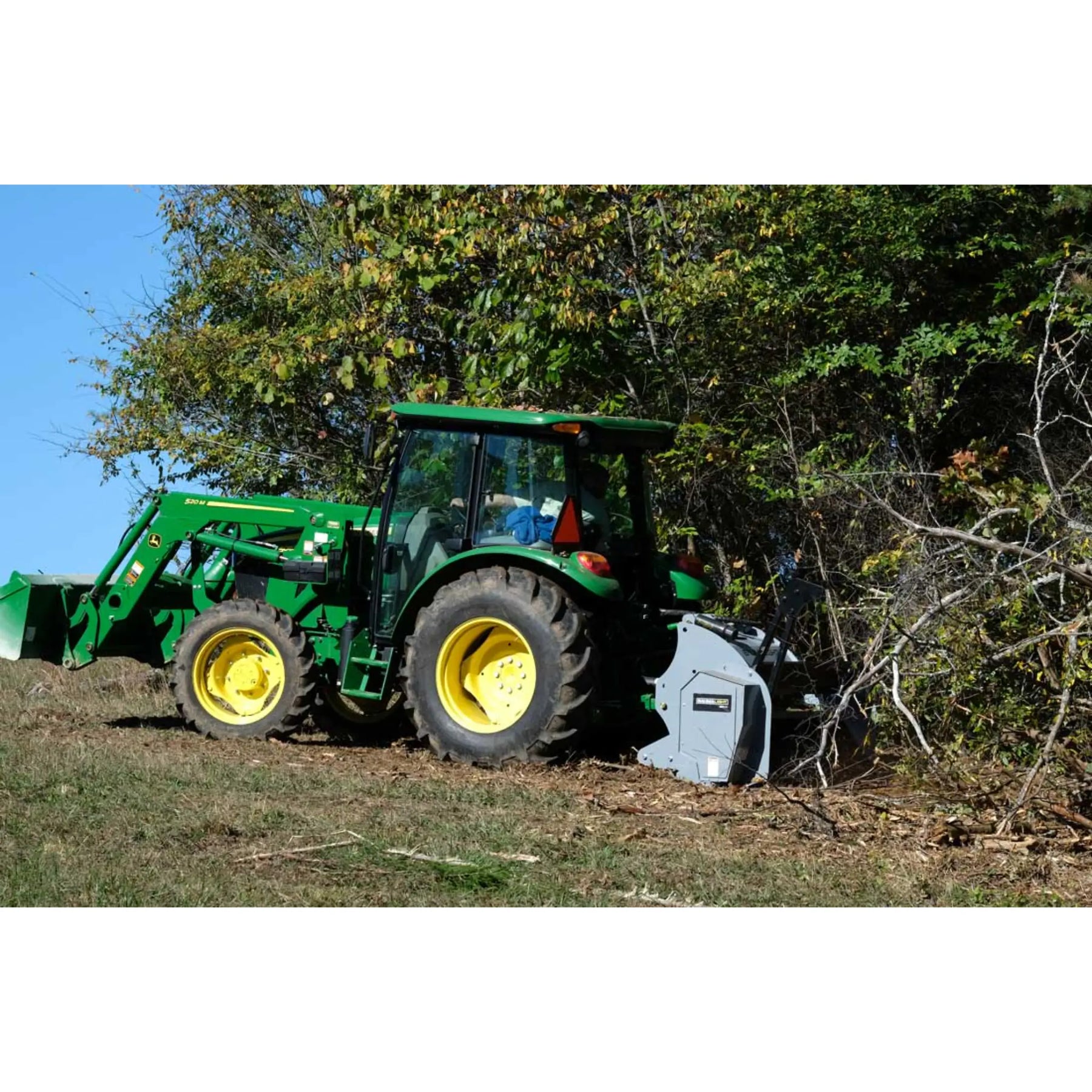

Additional features enhance the functionality and durability of the MP560. Integrated push bars guide and bend tall brush for smoother processing, while adjustable skid shoes allow height customization for varied mulching needs. Heavy-duty tooth holders and a free set of six replacement teeth ensure long-lasting performance and easy maintenance.
Specifications
| Model No. | MP348 | MP360 | MP560 | MP572 | MP972 | Large Shaft to up the HP |
|---|---|---|---|---|---|---|
| Path Width | 60" | 72" | 75" | 87" | 84" | D002134 |
| Rotor Width | 48" | 60" | 60" | 72" | 72" | |
| Maximum Engine HP | 50 | 55 | 75 | 125 | 135 | 90 - 155 PTO Hp |
| Maximum PTO HP | 40 | 45 | 65 | 115 | 125 | Do not exceed 165 Engine Hp |
| Minimum Engine HP | 25 | 30 | 45 | 50 | 90 | |
| Cutting Depth | Level | Level | 1.5" Above to 1" Below Grade | 1.5" Above to 1" Below Grade | Level to 2" Below Grade | |
| Cutting Style | High Speed Teeth | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped | |
| Tooth Part number | H3000 | H3000 | P5000 | P5000 | R9000 | |
| Number of cutters | 60 | 74 | 92 | 112 | 43 | |
| Rotor Shaft Size | 2" | 2" | 2" | 2" | 2" | |
| Rotor Diameter (tool tips) | 15" | 15" | 15" | 15" | 18.5" | |
| Rotor Weight (with tools) | 230 lbs | 315 lbs | 575 lbs | 700 lbs | 1,105 lbs | |
| Hitch Size | CAT 1 | CAT 1 | CAT 2 | CAT 2 | CAT 2 or 3 | |
| Quick hitch compatibility | Yes | Yes | No | No | No | No |
| Drive Speed | 540 | 540 | 540 | 1,000 | 1,000 | |
| Drive Speed Options | 540 (Max Engine HP 110) | 540 (Max Engine HP 110) | ||||
| Gearbox Spline Size | 1-3/8" | 1-3/8" | 1-3/8" | 1-3/8" | 1-3/8" | |
| Tractor End Spline Size | 1-3/8" | 1-3/8" | 1-3/8" | 1-3/8" | 1-3/8" | 1.75" 20 -spline |
| System Protection | Slip Clutch | Slip Clutch | Slip Clutch | Slip Clutch | Slip Clutch | |
| Unit Weight | 1050 lbs | 1200 lbs | 2145 lbs | 2500 lbs | 3200 lbs | |
| Hydraulic Requirements | Not Applicable | Not Applicable | 1 Remote | 1 Remote | 2 Remotes |
Maximum brush cutting sizes
Maximum Brush Cutting Sizes
(Brush Diameter in Inches)
500 Series
| MODEL | TRACTOR SPEED | RPM | 45 HP | 50 HP | 60 HP | 65 HP | 68 HP | 75 HP | 100 HP | 125 HP |
|---|---|---|---|---|---|---|---|---|---|---|
| MP560 | Low Gear Creeper Hydrostatic |
1800 | 1" 2" 3" |
1.5" 2.5" 4" |
2" 3" 5" |
-- -- -- |
2.5" 4" 6" |
-- -- -- |
-- -- -- |
-- -- -- |
| MP572 | Low Gear Creeper Hydrostatic |
1800 | -- -- -- |
-- -- -- |
-- -- -- |
2.5" 4" 6" |
-- -- -- |
3" 5" 8" |
3.5" 6" 10" |
4" 7" 12" |
