Baumalight GXM350 Stump Grinder For 1.5 - 4 Ton Excavators -BML-GXM350-X508-B
Engineered for 1.5 to 4 ton excavators and accommodating 8 to 40 GPM flow rates, the Baumalight GXM350 stump grinder boasts a high-performance bent axis piston motor and a robust 19" rotor with a 1" thick steel construction. Its superior mulching capability is achieved through a densely populated tooth layout, reducing individual tooth wear and ensuring buttery-smooth operation.
Baumalight GXM350

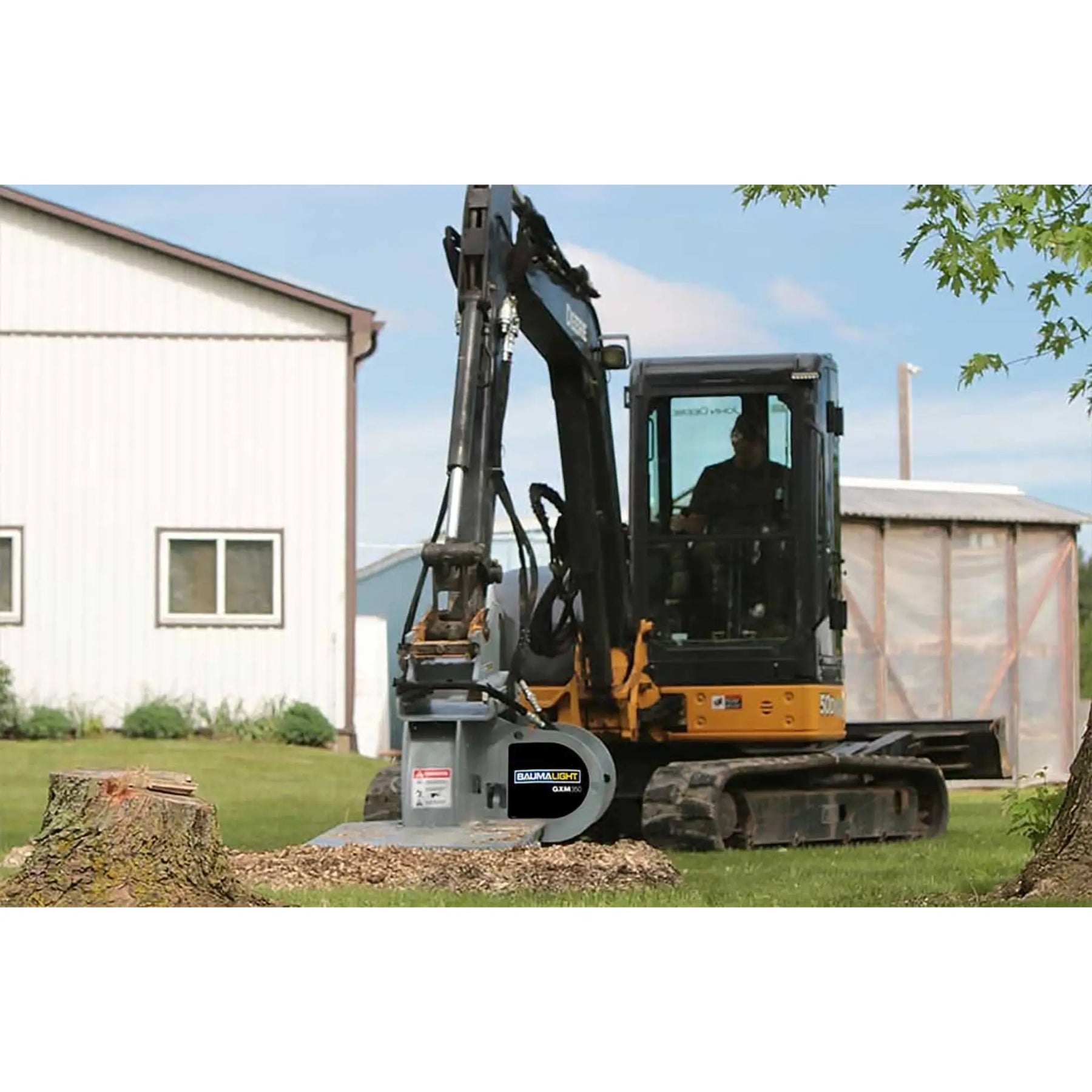

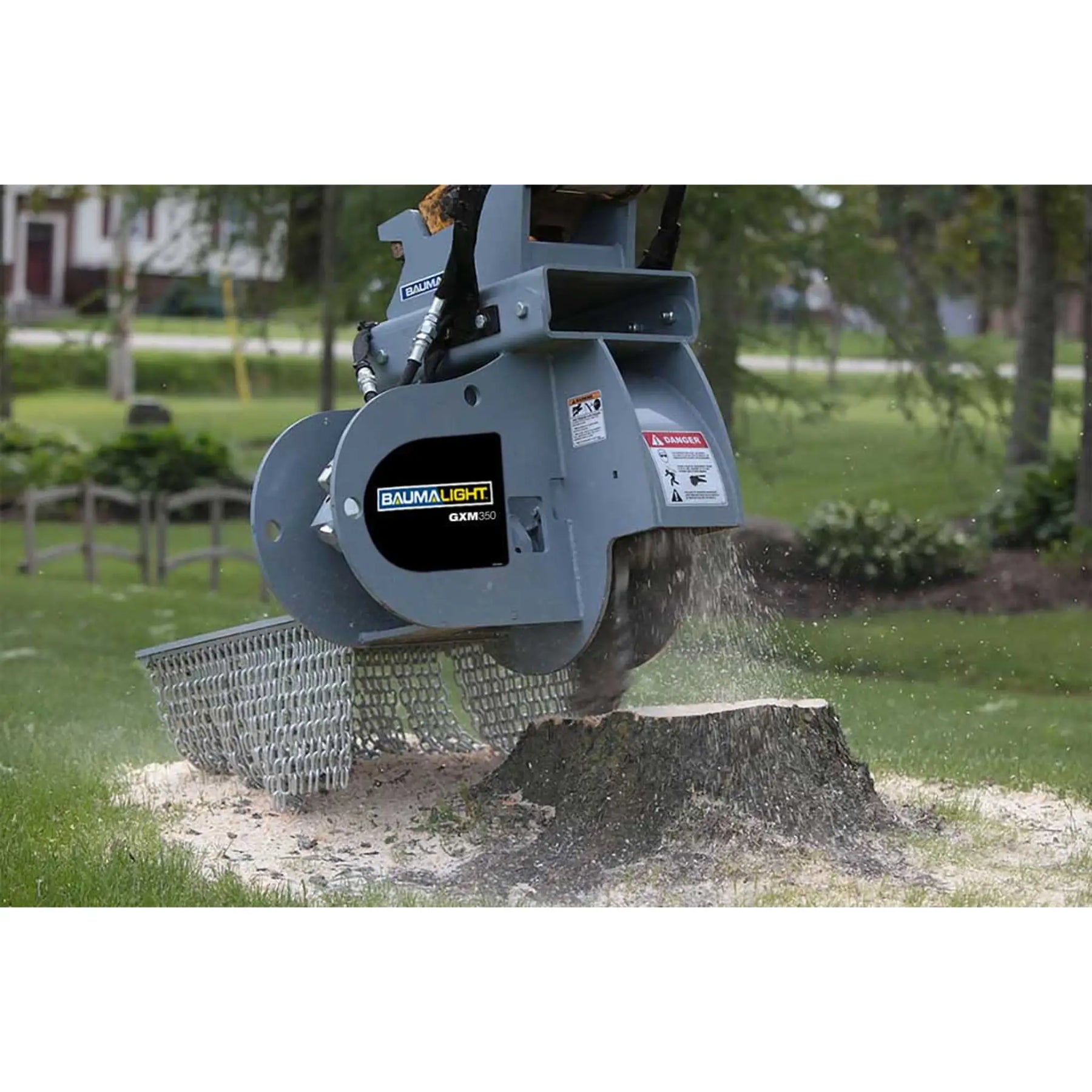

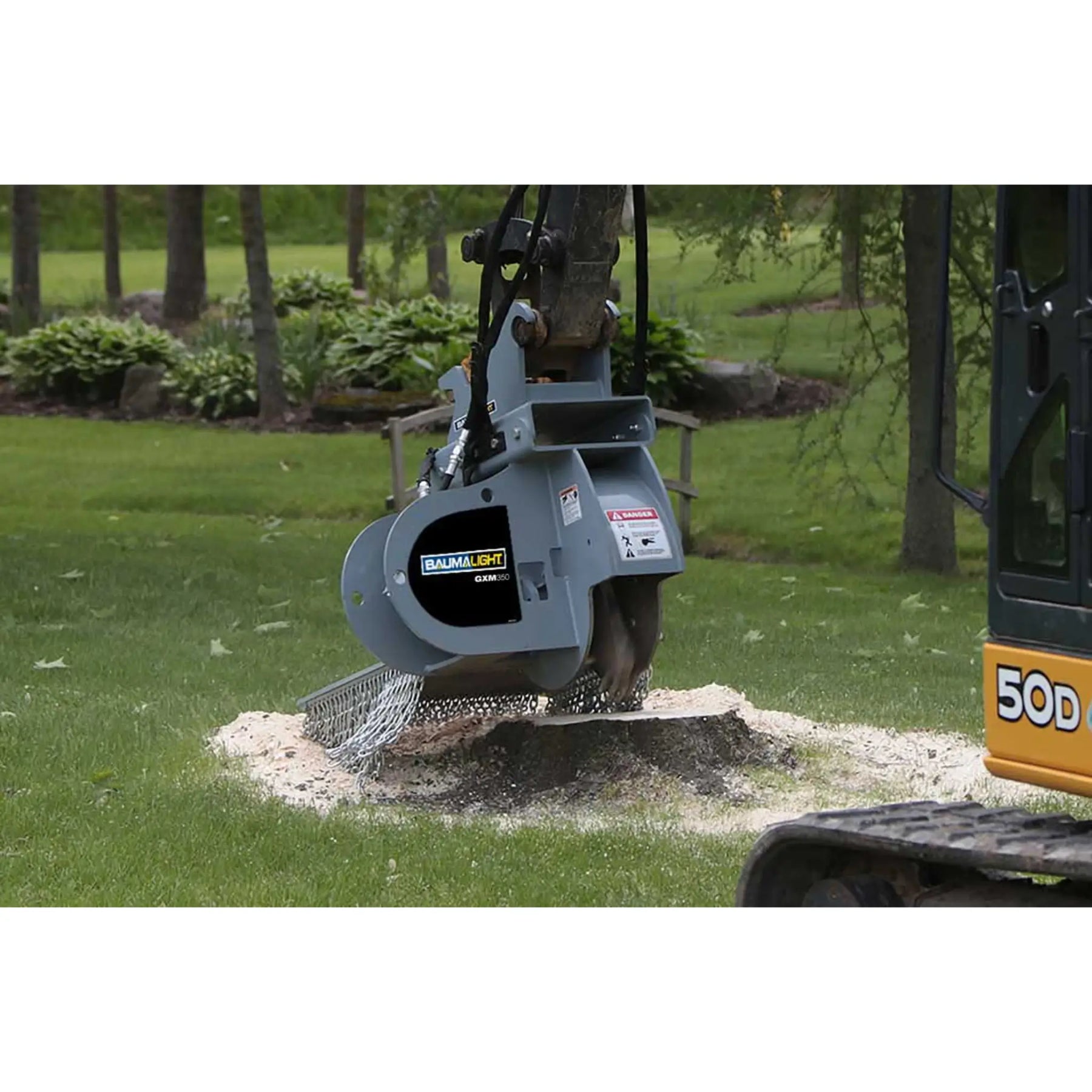

The Baumalight GXM350 stump grinder, engineered for excavators weighing between 1.5 to 4 tons, is the pinnacle of efficiency in stump removal. With a hydraulic flow range of 8 to 40 gallons per minute, this robust grinder is equipped with a formidable 19-inch rotor powered by a high-performance bent-axis piston motor.

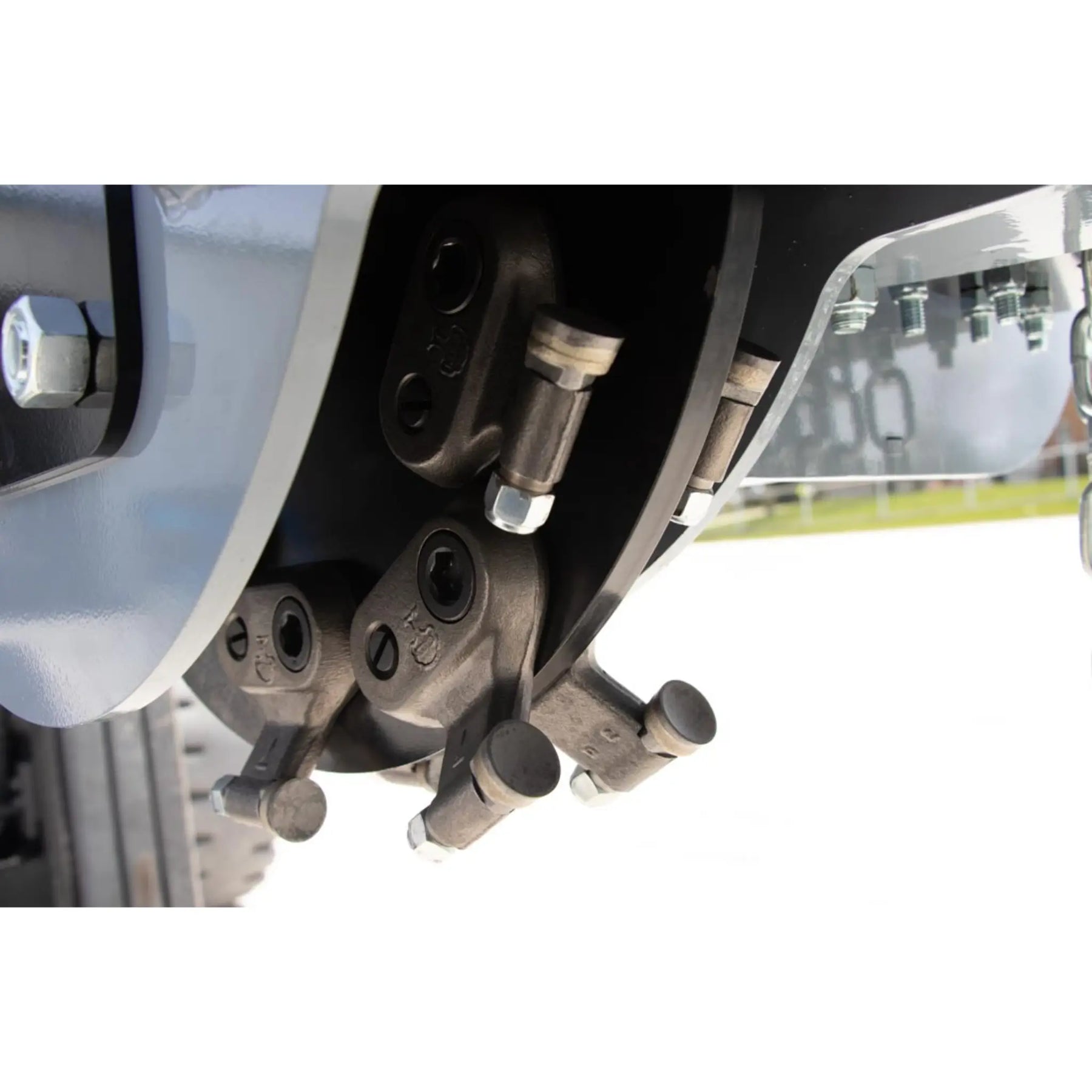

The rotor's construction, a hefty 1-inch thick steel plate, provides a stable foundation for the 12 tdurable carbide teeth, ensuring a steadfast operation with minimal flex under pressure. These teeth offer extended life by allowing rotation to a fresh edge up to three times, drastically reducing replacement frequency.
Baumalight’s GXM350 offers customization through three motor options to perfectly align with various hydraulic flows and pressures, maximizing productivity. Whether tackling tough hardwood stumps or clearing softer wood, the GXM350 ensures a quick and effective stump removal process.
Specifications
| Model No. | S14 | S18 | GXM350 | GXM550 | GXM750 |
|---|---|---|---|---|---|
| Recommended Carrier Size | 1-2 ton | 1.5-4 ton | 1.5-4.5 ton | 3.5-8 ton | 7-18 ton |
| Motor Type | Gerotor | Gerotor | High efficiency bent axis piston | High efficiency bent axis piston | High efficiency bent axis piston |
| Hydraulic GPM | Check Motor Options | Check Motor Options | Check Motor Options | Check Motor Options | Check Motor Options |
| Rotor Size | 18" | 24" | 19" | 24" | 24" |
| Number of Teeth | 12 | 34 | 12 | 12 | 12 |
| Tooth Part number | H3000 | S1000 | H3000 | H3000 | H3000 |
| Tooth Construction | High speed | Planer | High speed | High speed | High speed |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No limit | No limit | No limit | No limit | No limit |
| Cutting Depth - Below Ground | 6" | 10" | 16" | 24" | 24" |
| Maximum Cutting Depth - Per Pass | 2" | 5" | 3/4" | 1" | 1" |
| Maximum Horizontal Cut | 12" | 22" | 12" | 22" | 22" |
| Over Torque Protection | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve |
| Hitch | 1" pivot pins | 1" pivot pins | Bolt on | Bolt on | Bolt on |
| No. of Remotes Required - Hydraulic | 1 | 1 | 1 | 1 | 1 |
| Requires 12 Volt DC | No | No | No | No | No |
| Unit Weight (Shipping) Lbs. | 394 | 642 | 650 | 822 | 1300 |
Motor options - stump cutting time chart
EXCAVATOR STUMP CUTTING TIMES BASED ON 24" STUMP
| Motor | Case Drain | PSI | 12 GPM | 15 GPM | 20 GPM | 25 GPM | 30 GPM | 35 GPM | 40 GPM | 50 GPM | 60 GPM | CC |
Motor Type |
RPM at MAX GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X508 Motor Available for : GXM350,GXM550 |
Critical | 3,000 | 25 min | 20 min | -- | -- | -- | -- | -- | -- | -- | 25 | Piston | 2300 |
| 4,000 | 20 min | 15 min | -- | -- | -- | -- | -- | -- | -- | |||||
|
X510 Motor Available for : GXM350,GXM550 |
Critical | 3,000 | 25 min | 15 min | 8 min | 7 min | -- | -- | -- | -- | -- | 34 | Piston | 4290 |
| 4,000 | 20 min | 10 min | 7 min | 5 min | -- | -- | -- | -- | -- | |||||
|
X530 Motor Available for : GXM350,GXM550 |
Critical | 3,000 | -- | 16 min | 8 min | 7 min | 7 min | -- | -- | -- | -- | 47 | Piston | 2100 |
| 4,000 | -- | 11 min | 7 min | 5 min | 5 min | -- | -- | -- | -- | |||||
|
X540 Motor Available for : GXM550,GXM750 |
Critical | 3,000 | -- | -- | 8 min | 7 min | 6 min | 5 min | -- | -- | -- | 65 | Piston | 2100 |
| 4,000 | -- | -- | 7 min | 5 min | 5 min | 4 min | -- | -- | -- | |||||
|
X550 Motor Available for : GXM550,GXM750 |
Critical | 3,000 | -- | -- | -- | 7 min | 6 min | 5 min | 4 min | -- | -- | 64 | Piston | 2140 |
| 4,000 | -- | -- | -- | 5 min | 5 min | 4 min | 3 min | -- | -- | |||||
|
X570 Motor Available for : GXM750 |
Critical | 3,000 | -- | -- | -- | -- | 7 min | 6 min | 4 min | 3 min | -- | 84 | Piston | 2000 |
| 4,000 | -- | -- | -- | -- | 6 min | 4 min | 3 min | 3 min | -- | |||||
|
X590 Motor Available for : GXM750 |
Critical | 3,000 | -- | -- | -- | -- | -- | -- | 5 min | 3 min | 3 min | 108 | Piston | 1900 |
| 4,000 | -- | -- | -- | -- | -- | -- | 3 min | 3 min | 2 min |
