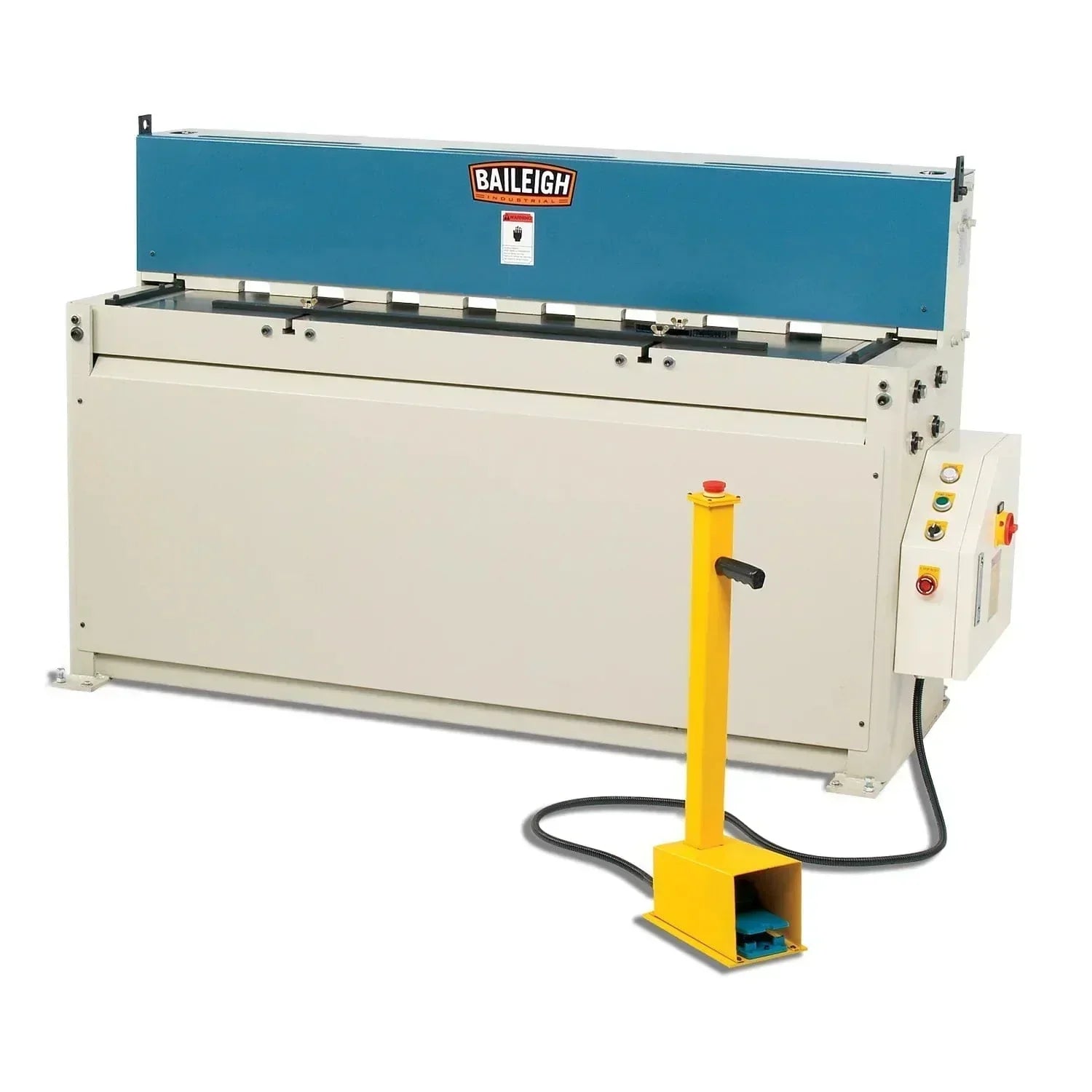

Baileigh SH-6010; 220V 3Phase Hydraulic Powered Shear 60" Length 10 Gauge Mild Steel Capacity

Baileigh SH-6010 220V 3Phase Hydraulic Powered Shear 60" Length 10 Gauge Mild Steel Capacity

We build this 10 gauge metal shear with a fully welded metal plate frame to reduce flex and ensure accuracy. Industrial-grade hydraulics produce smooth movements that prolong blade life.

• <60” length sheet metal shear..
• 10 gauge mild steel maximum capacity.
• Minimum capacity of 24 gauge mild steel.
• 3 hp motor runs on 220-volt 3-phase power.
• Up to 26 strokes per minute.

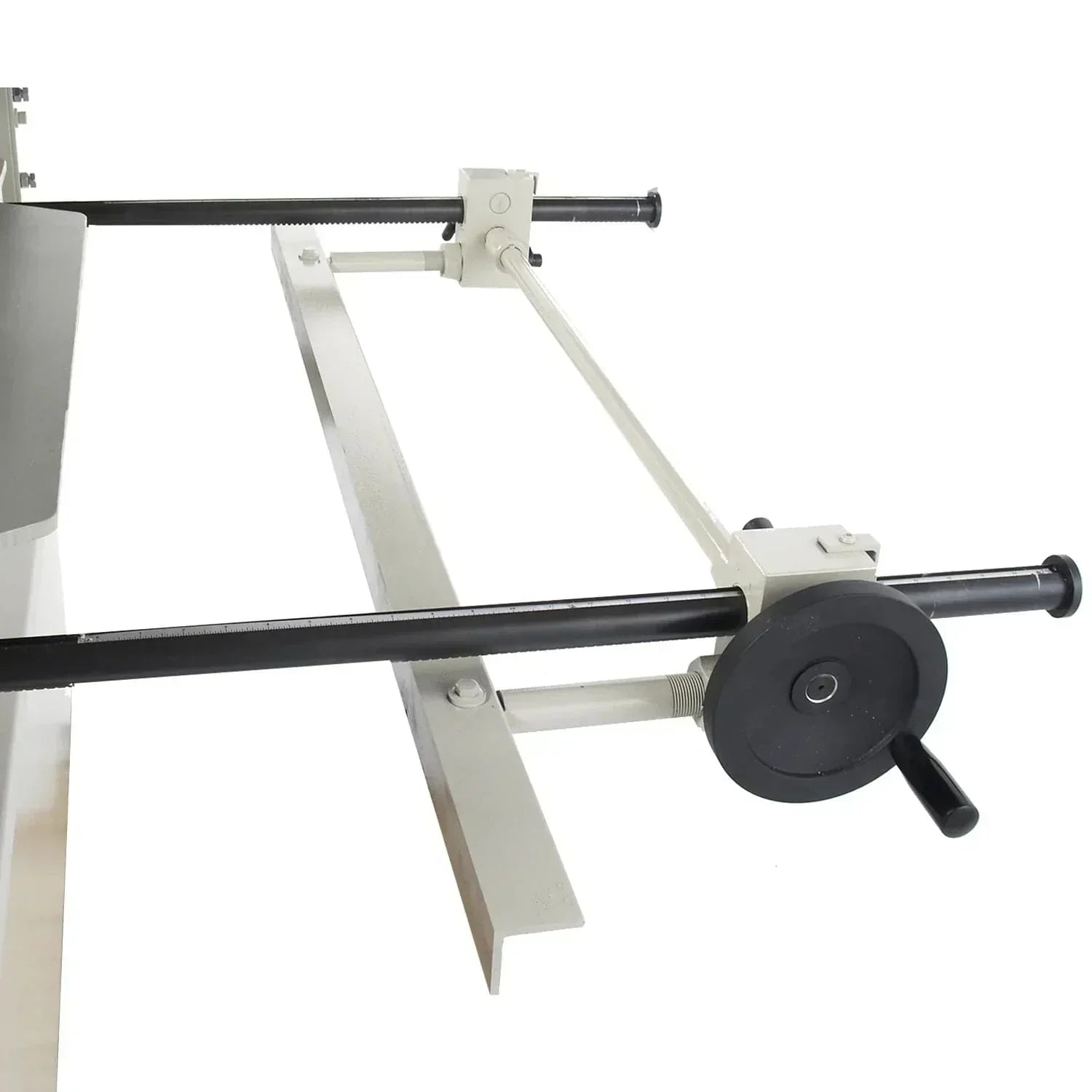

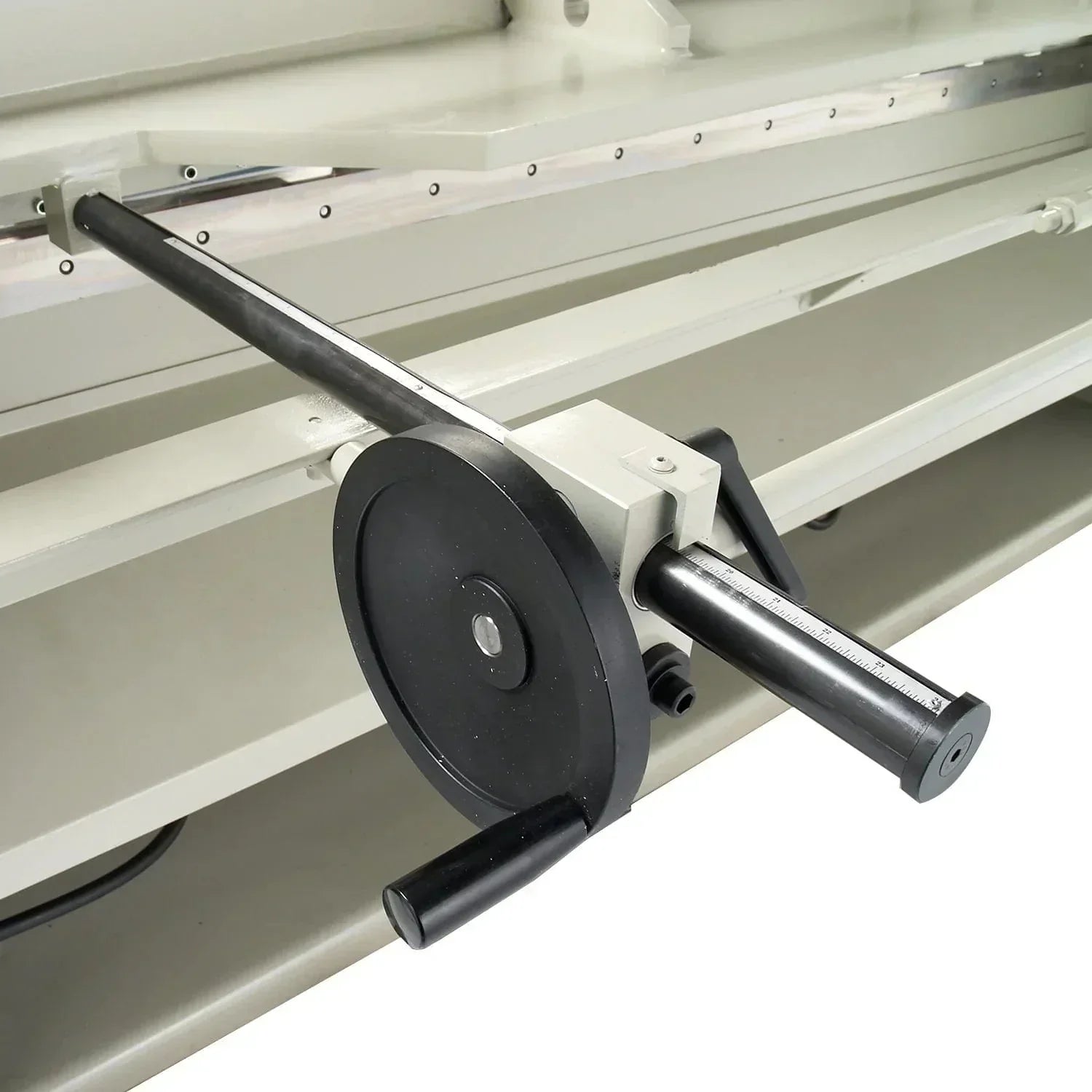

• Adjustable 24” backgauge ensures precise repeatability.

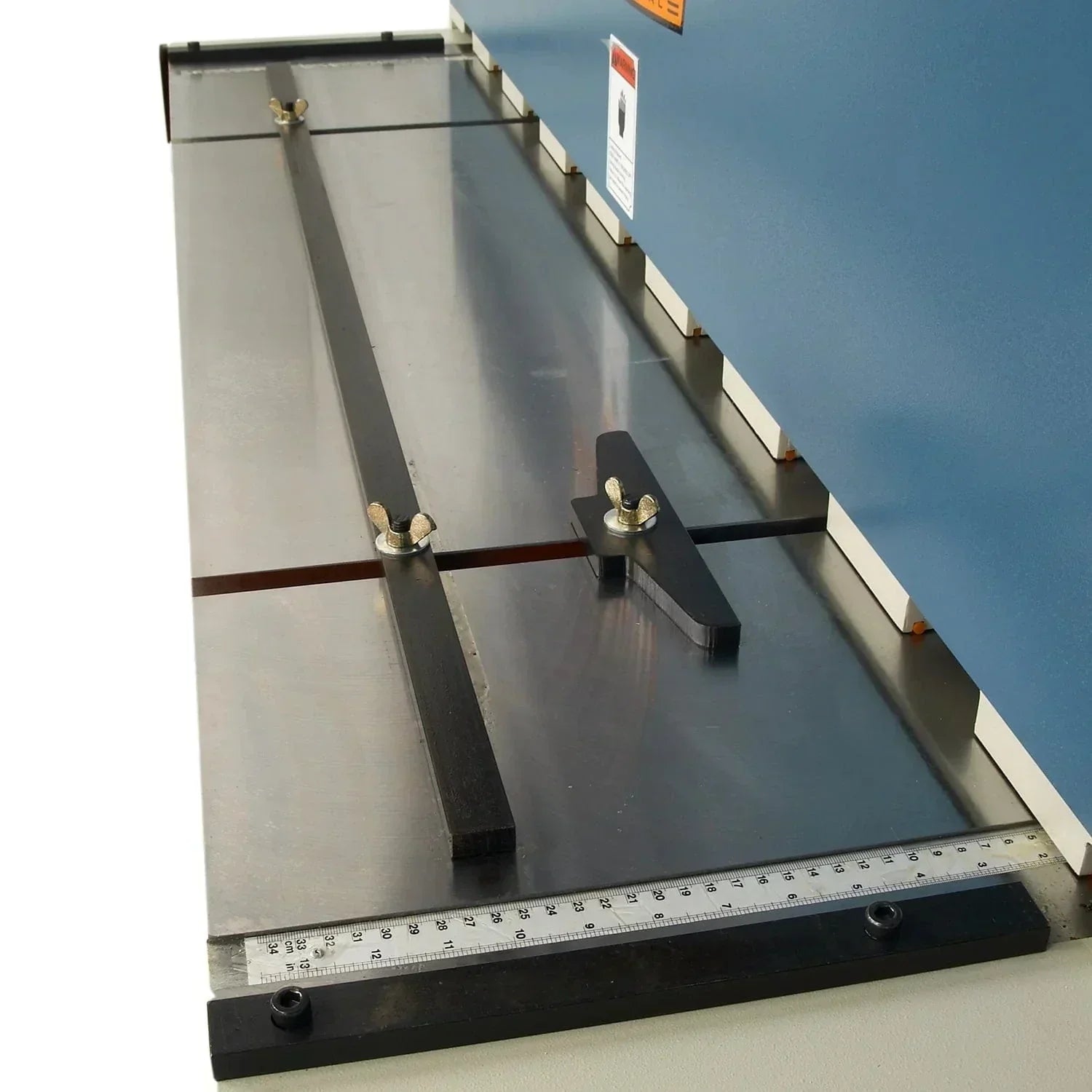

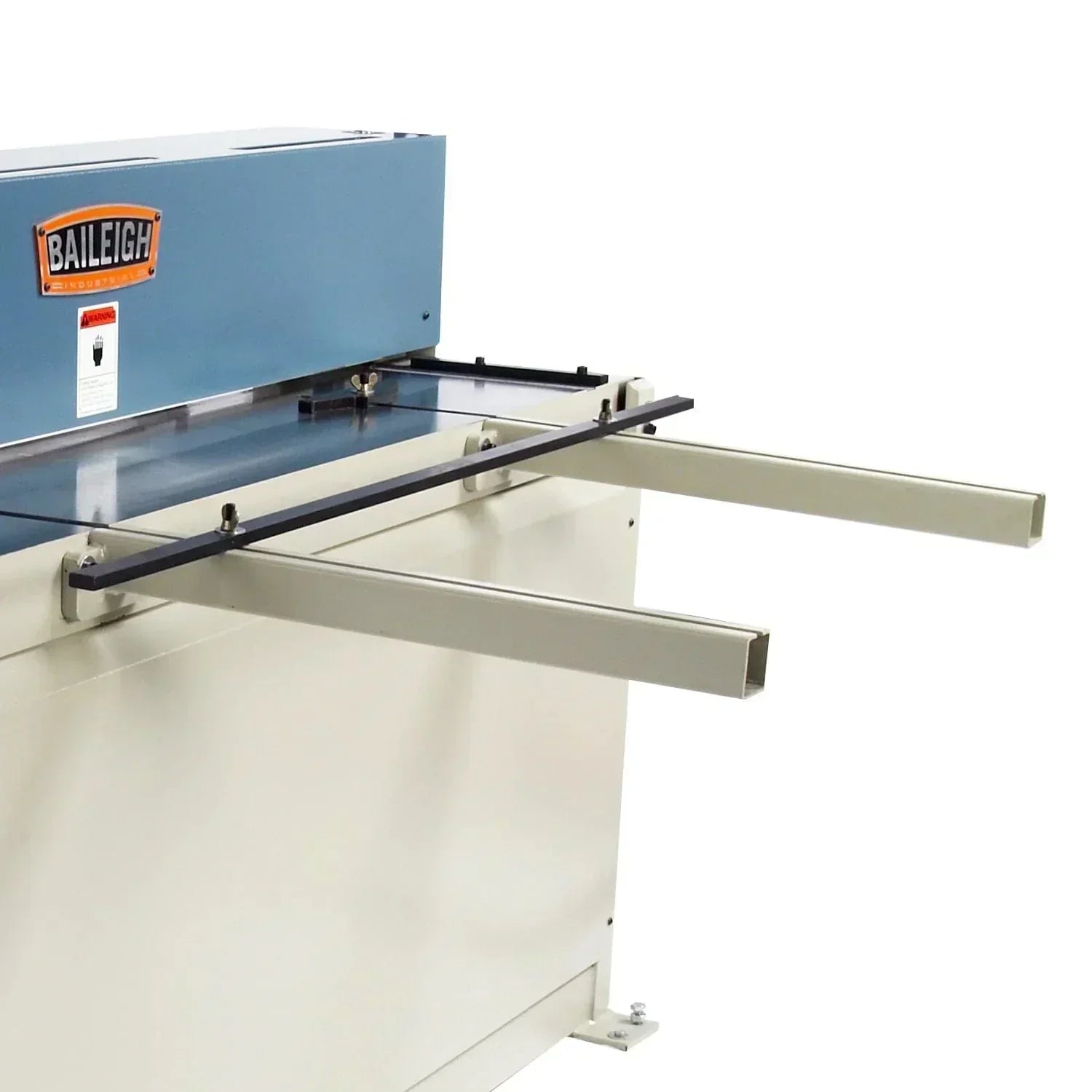

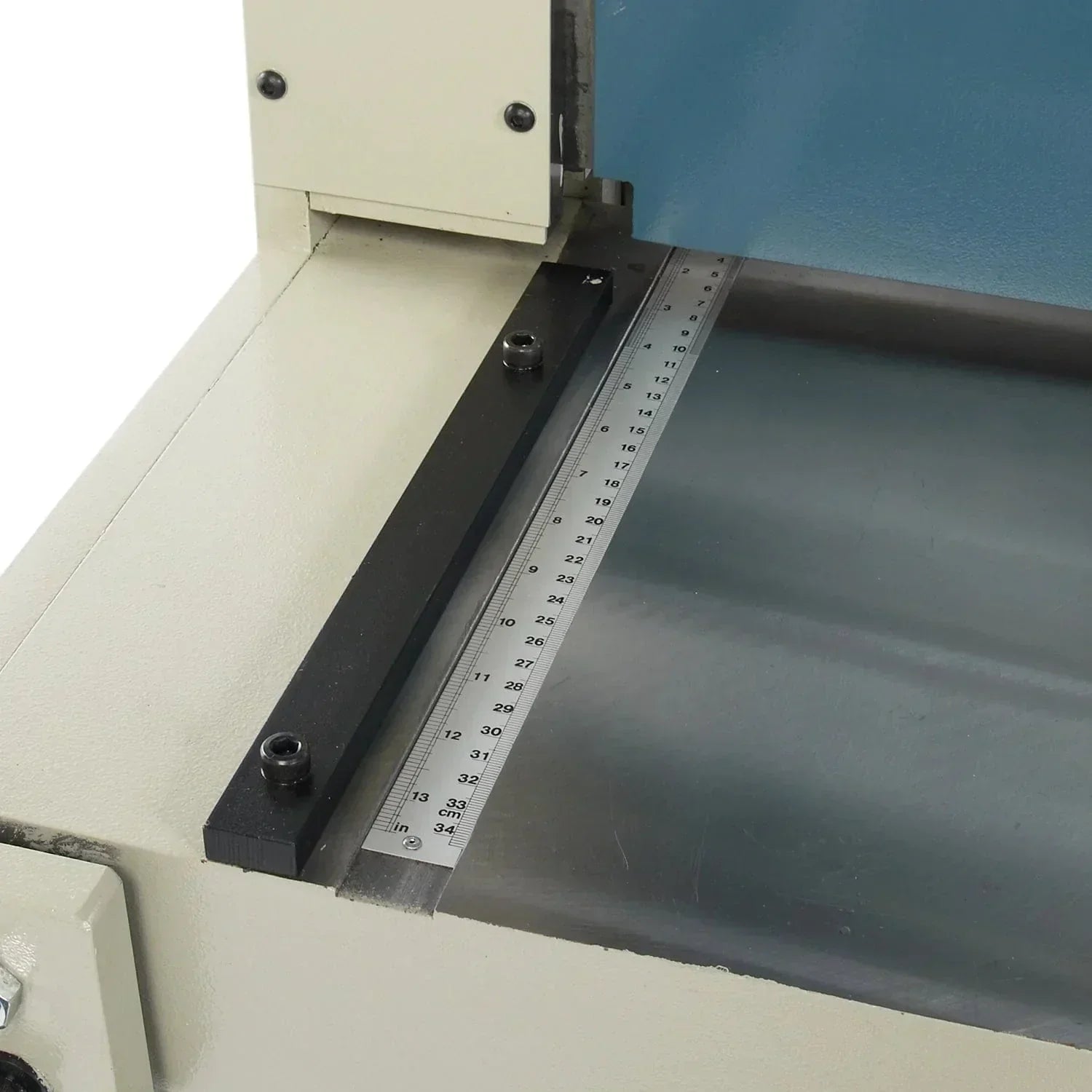

• Front support arms and table guides keep the material square to the blade.

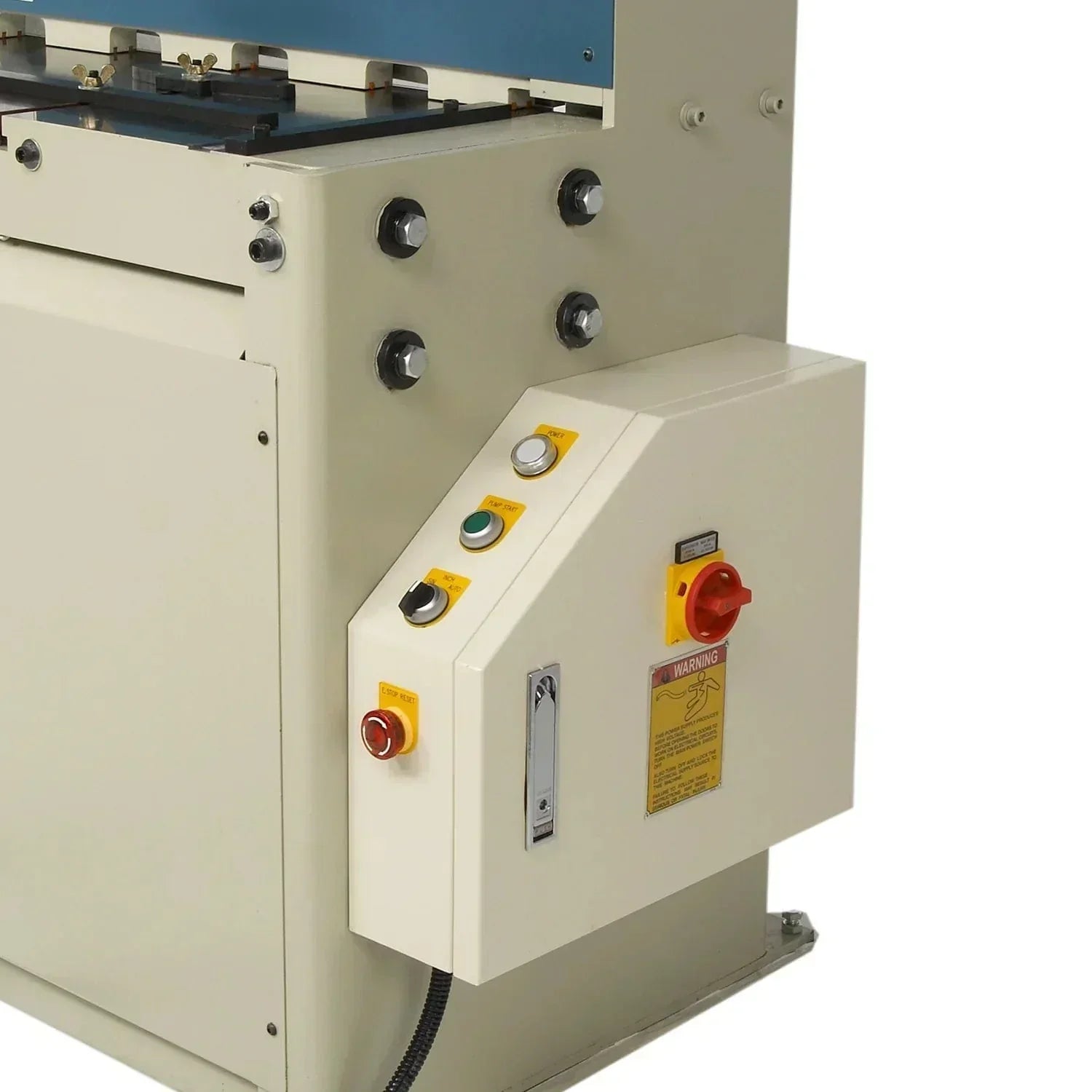

• 3 modes on the operator console:
• Inch mode: Jog the control and ease the blade down to the material.

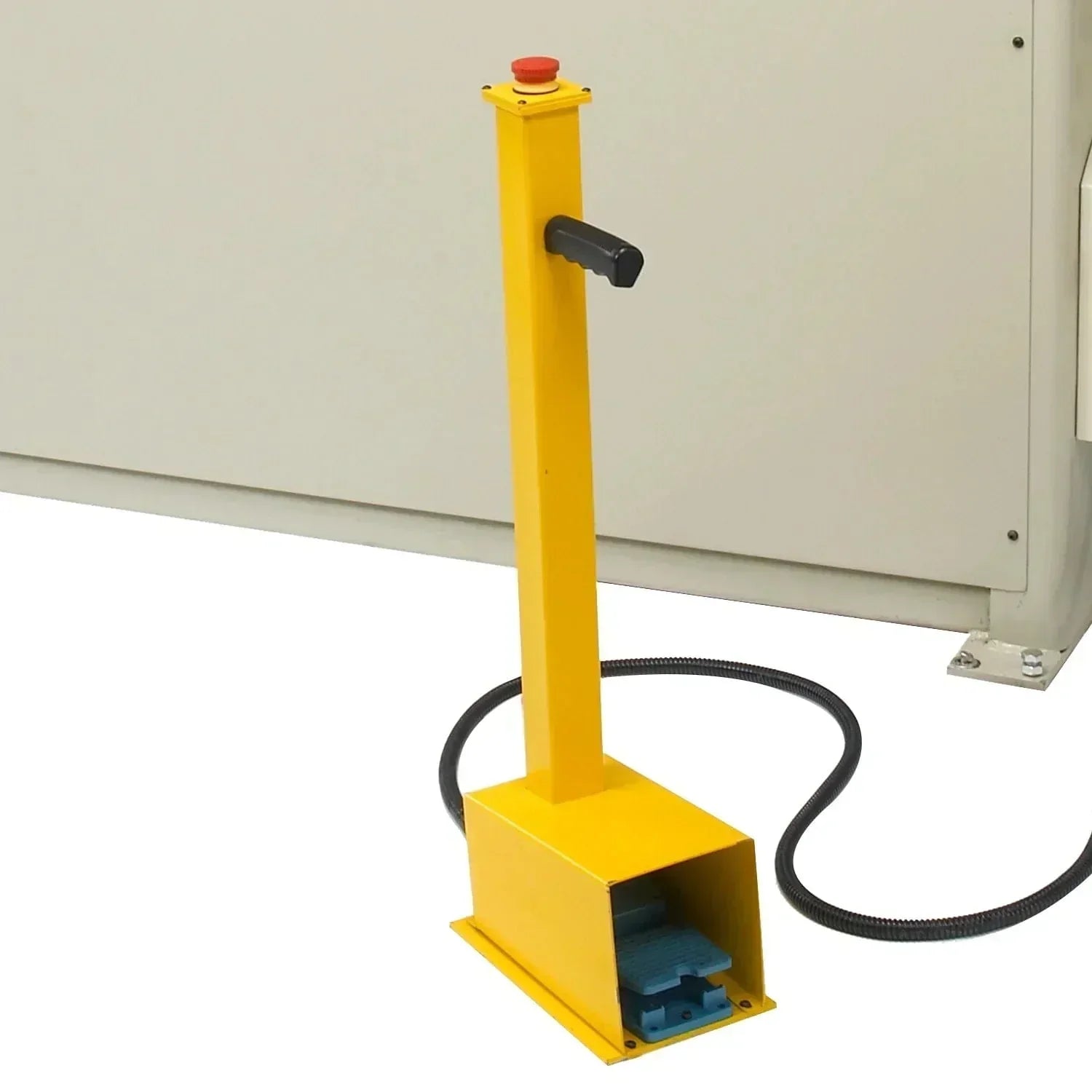

• Single mode: Make one cut cycle per foot pedal push.
• Auto mode: Continue cycling as you hold the pedal down.
• Comes standard with high carbon chromium blades.
• Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
• Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.

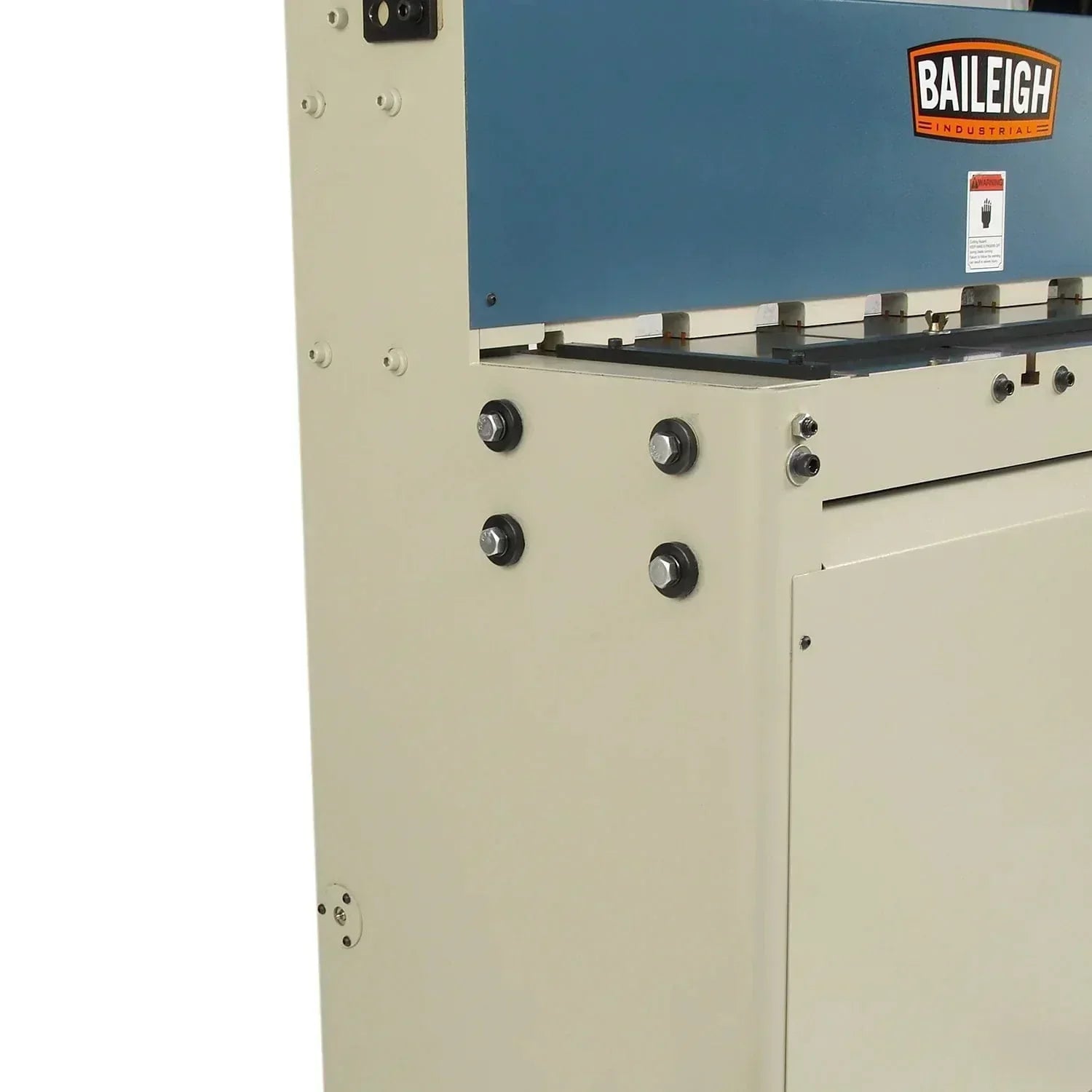

• Rigid steel frame minimizes deformation and helps deliver clean, high-quality cuts.
• Covered by a 1-year parts warranty.
• We stock replacement parts, including blades, in house for fast shipping.
• Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.

Specifications

Item Number SH-6010
Back Gauge Length 24'
Shear Length 60'
Motor 5 hp
Thickness (SS) 10 ga. (13 ga.)
Strokes Per Minute 26
Front Gauge Length 24'
Blade Angle 1°
Power 220V / 3-phase
Shipping Weight 3000lbs
Minimum Material Thickness 24ga
Shipping Dimensions (Inches) 85x35x58

What Our Experts Think

• Exceptional Cutting Power: The Baileigh SH-6010 features a 220V, 3-phase hydraulic system, designed to handle 60" lengths and 10 gauge mild steel with ease.
• Precision and Accuracy: Delivers precise, clean cuts every time, making it perfect for high-quality metal fabrication.
• Heavy-Duty Construction: Built to withstand heavy use, ensuring long-lasting performance in industrial and commercial environments.
• User-Friendly: Easy-to-use controls and efficient hydraulic action make it ideal for both experienced operators and those new to shearing.
• Versatile: Suitable for a wide range of applications, including metalworking, automotive repairs, and large-scale manufacturing.
• Energy Efficient: The 220V, 3-phase power system ensures maximum efficiency while minimizing energy consumption

Q&A

Q: What is the Baileigh SH-6010 Hydraulic Powered Shear used for?
A: The Baileigh SH-6010 is designed for cutting 60" lengths of up to 10 gauge mild steel, making it ideal for high-volume, industrial metalworking and fabrication.

Q: What are the main features of the Baileigh SH-6010?
A: The SH-6010 features hydraulic operation, a 60" cutting width, and a 10 gauge mild steel capacity, providing clean, precise cuts for demanding metal cutting tasks.

Q: Is the Baileigh SH-6010 easy to use?
A: Yes, the Baileigh SH-6010 is equipped with intuitive controls, making it simple and efficient for both experienced and novice operators.

Q: What power supply is required for the Baileigh SH-6010?
A: The Baileigh SH-6010 requires a 220V 3-phase power supply, making it suitable for large-scale industrial environments.

Q: Does the Baileigh SH-6010 come with a warranty?
A: Yes, the Baileigh SH-6010 includes a manufacturer's warranty, ensuring its reliability and long-term performance

Maintenance Tips

• Routine Cleaning: Regularly clean the machine to prevent buildup of metal debris and dust that could affect performance.

• Lubrication: Keep moving parts well-lubricated to minimize wear and ensure smooth hydraulic function.

• Hydraulic Fluid Checks: Frequently check hydraulic fluid levels and replace fluid as needed to maintain consistent pressure.

• Blade Maintenance: Inspect cutting blades for any wear or damage. Replace blades when necessary for precise cuts.

• Tighten Fasteners: Periodically check and tighten all bolts and fasteners to prevent loosening during operation.

• Calibrate: Regularly calibrate the shear to ensure cutting accuracy and optimal performance
